Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.10 Bowden pull wire for vertical shock absorber adjustment –
inspection and adjustment
Page 3 of 5
INSPECTION ADJUSTMENT TABLE OF CONTENTS

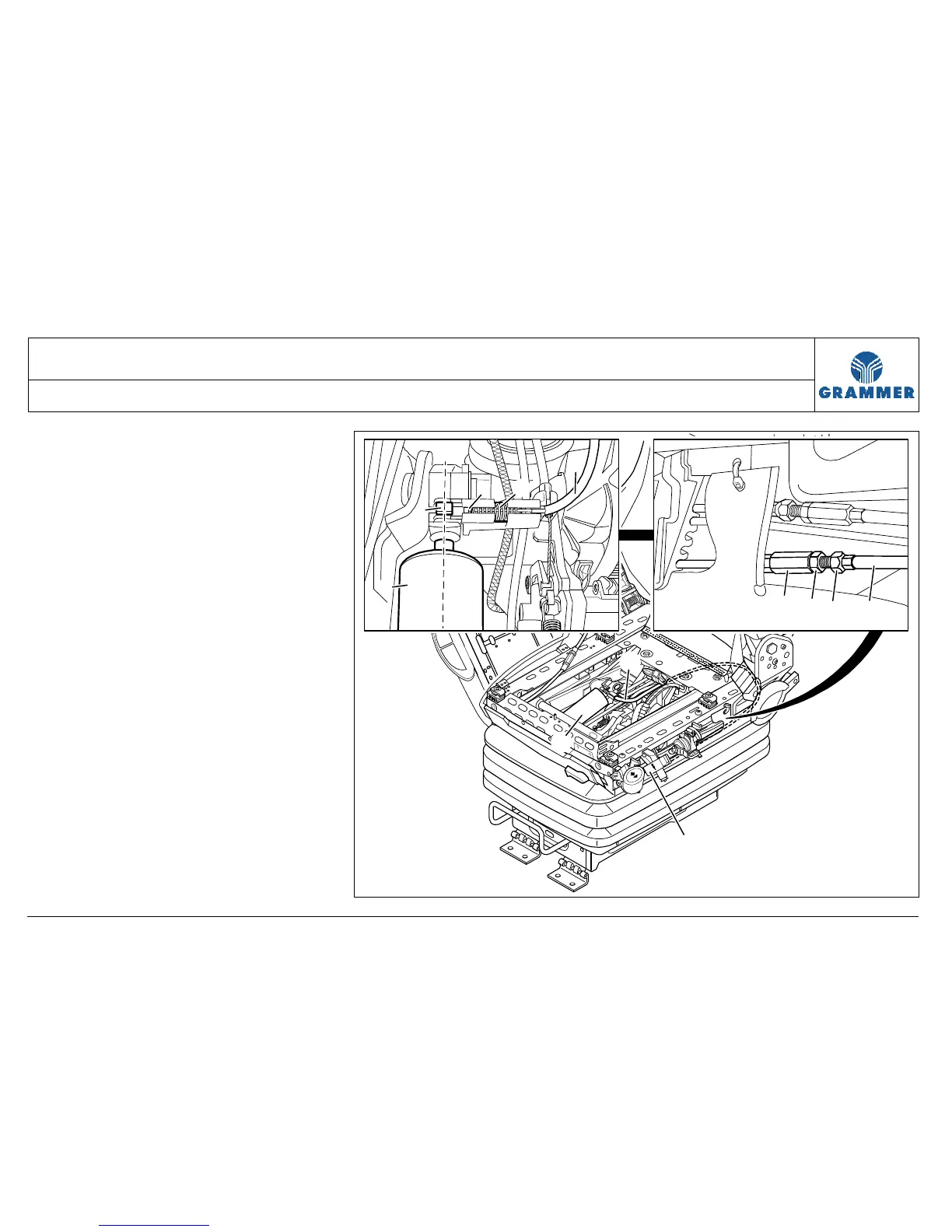

4 Check the adjustment of the vertical
shock absorber (3):
• The adjusting lever (4) must be set
to the middle position (line "A") in
relation to the vertical shock
absorber (3).
• The compression spring (5) must
tighten the Bowden pull wire for
vertical shock absorber
adjustment (1).
Adjustment
Note:
The adjustment of the Bowden pull wire
for vertical shock absorber adjustment
(1) is the same for seat models with left-
hand and with right-hand drive.
1 Remove the left covering in position
for repair (Chapter 3.4).
2 Remove the bellows at the rear left of
the handle rail (see Chapter 3.6).
A
1
5
9
4
3
1
3
2
1
7
6
8
