Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.10 Bowden pull wire for vertical shock absorber adjustment –
inspection and adjustment
Page 4 of 5
INSPECTION ADJUSTMENT TABLE OF CONTENTS

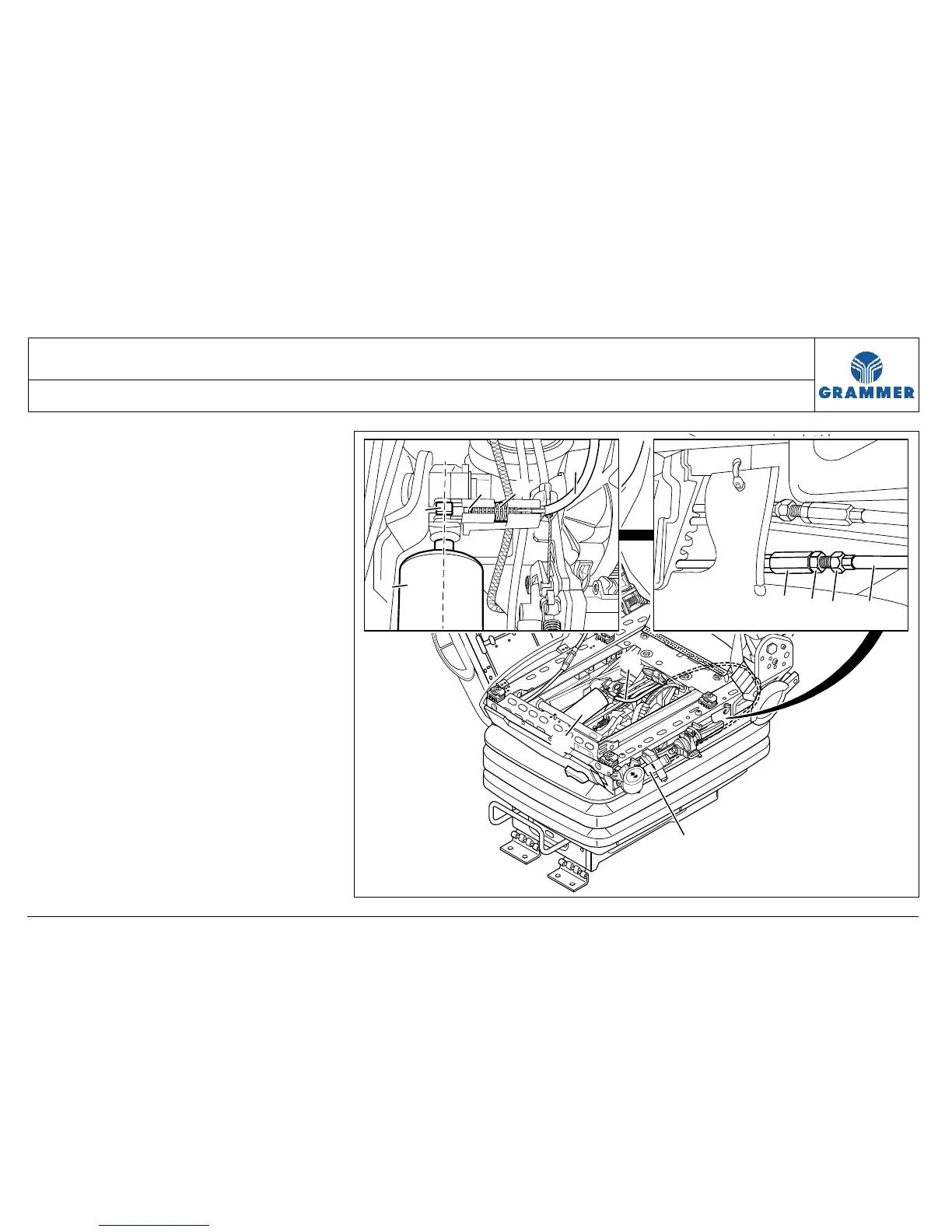

3 Turn the lever for vertical shock
absorber adjustment (2) to the middle
position.
4 Loosen the counternut (7) and bring
the adjusting lever (4) to the middle
position in relation to the vertical
shock absorber (3) (line "A") by means
of the regulating screw (6).
5 Turn the regulating screw (6) away
from the nut (8) in order to shorten the
excess length of the hauling rope (9)
or turn the regulating screw (6)
towards the nut (8) in order to extend
the excess length of the hauling
rope (9).
A
1
5
9
4
3
1
3
2
1
7
6
8
2180
