Grammer MSG 90.6PG - Page 142

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.10 Bowden pull wire for vertical shock absorber adjustment –
inspection and adjustment
Page 5 of 5
INSPECTION ADJUSTMENT TABLE OF CONTENTS

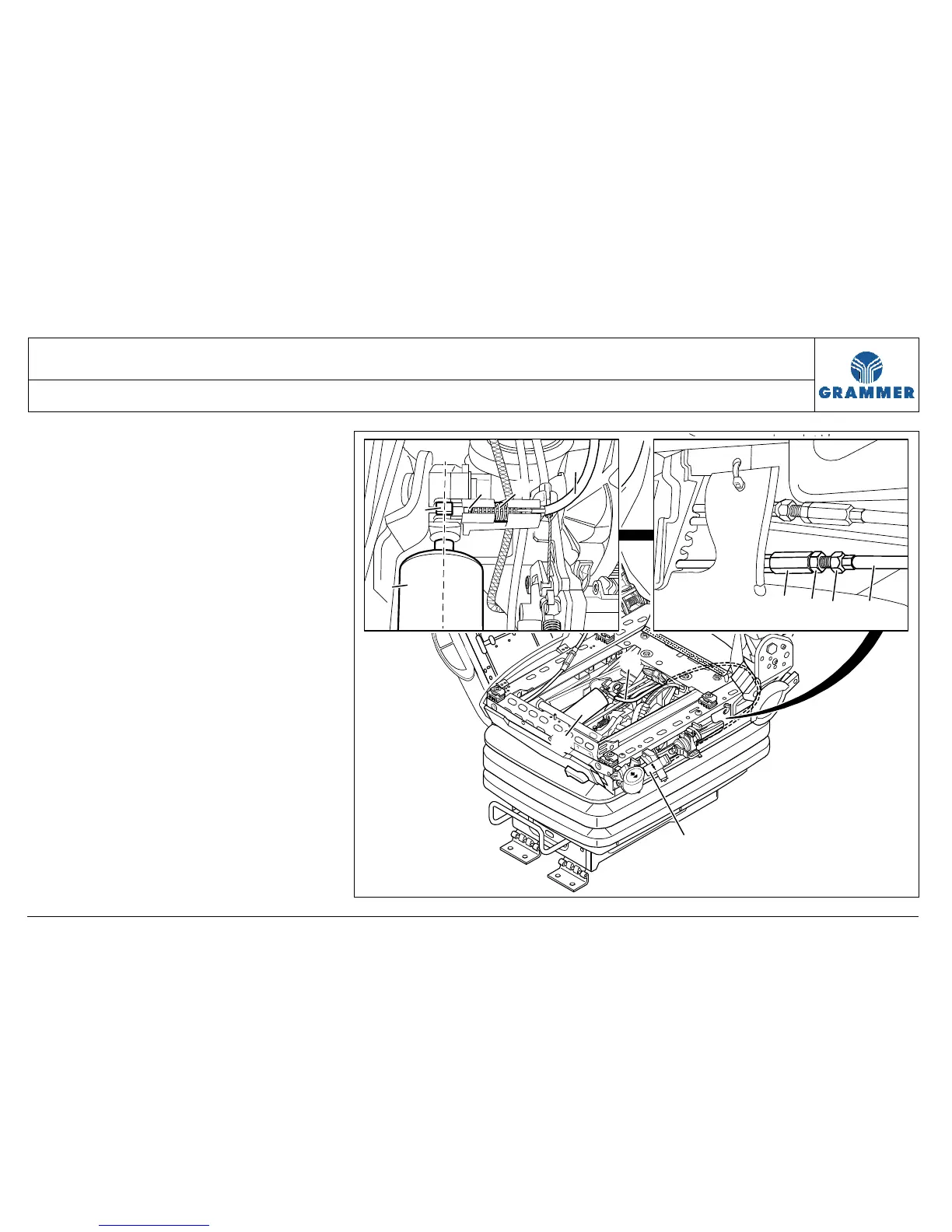

6 Hold the nut (8) in position and secure
the adjustment with the counternut (7).
Note:
Make sure not to distort the Bowden
pull wire for vertical shock absorber
adjustment (1).
7 Operate the lever for vertical shock
absorber adjustment (2) several times
in both directions, check it for correct
functioning and readjust it, if
necessary.
8 Install the bellows at the rear left of
the handle rail (see Chapter 3.6).
9 Attach the left covering (Chapter 3.4).
10 Install the seat cushion
(Chapter 3.1).
