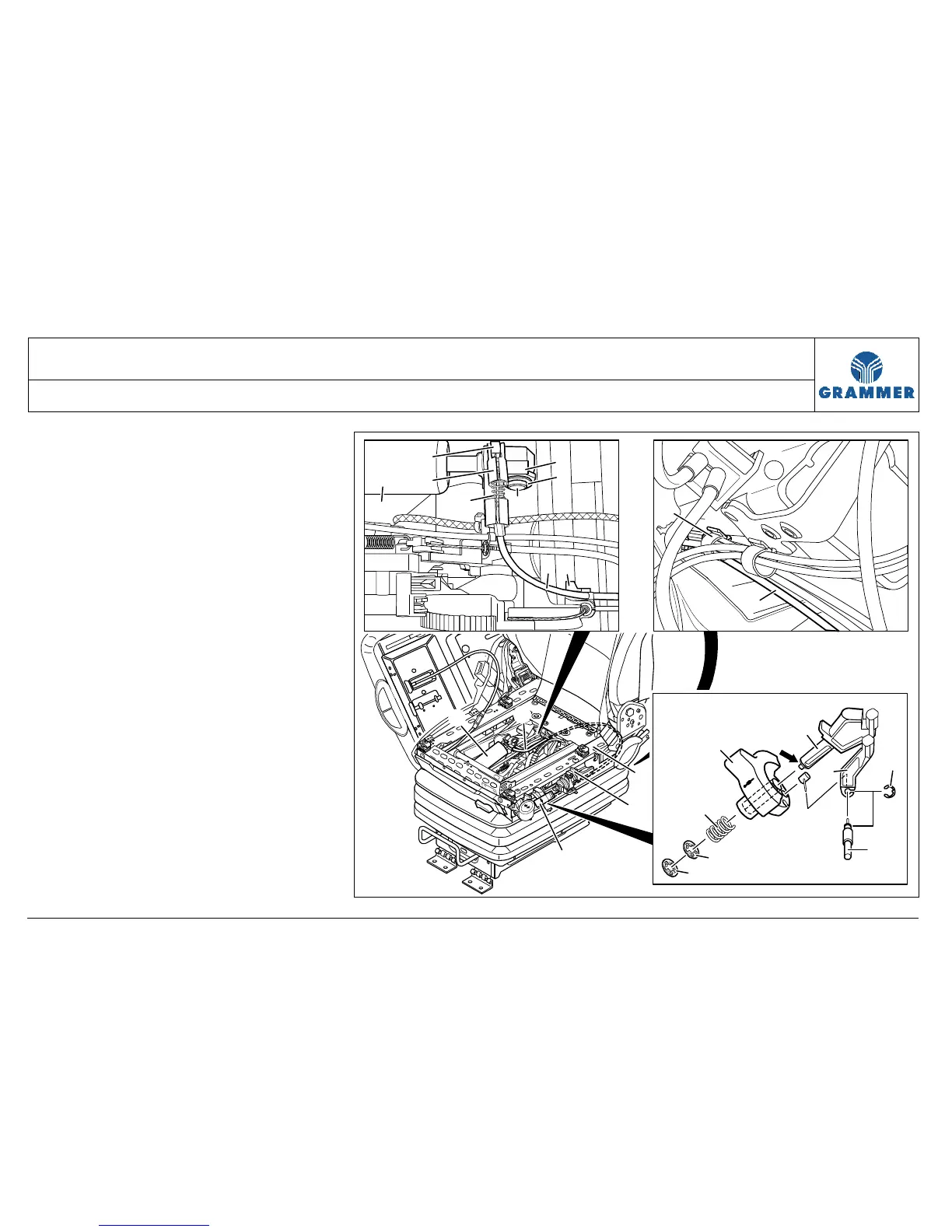

3.11 Bowden pull wire and lever for vertical shock absorber adjustment –
removal and installation
Page 1 of 7
REMOVAL / INSTALLATION TABLE OF CONTENTS
(1) Bowden pull wire for vertical shock
absorber adjustment
(2) Support
(3) Lever for vertical shock absorber
adjustment
(4) Adjusting lever
(5) Fork
(6) Compression spring
(7) Vertical shock absorber
(8) Bearing
(9) Lock washer
(10) Axle (swinging structure)
(11) Support
(12) Seat frame
(13) Clip
