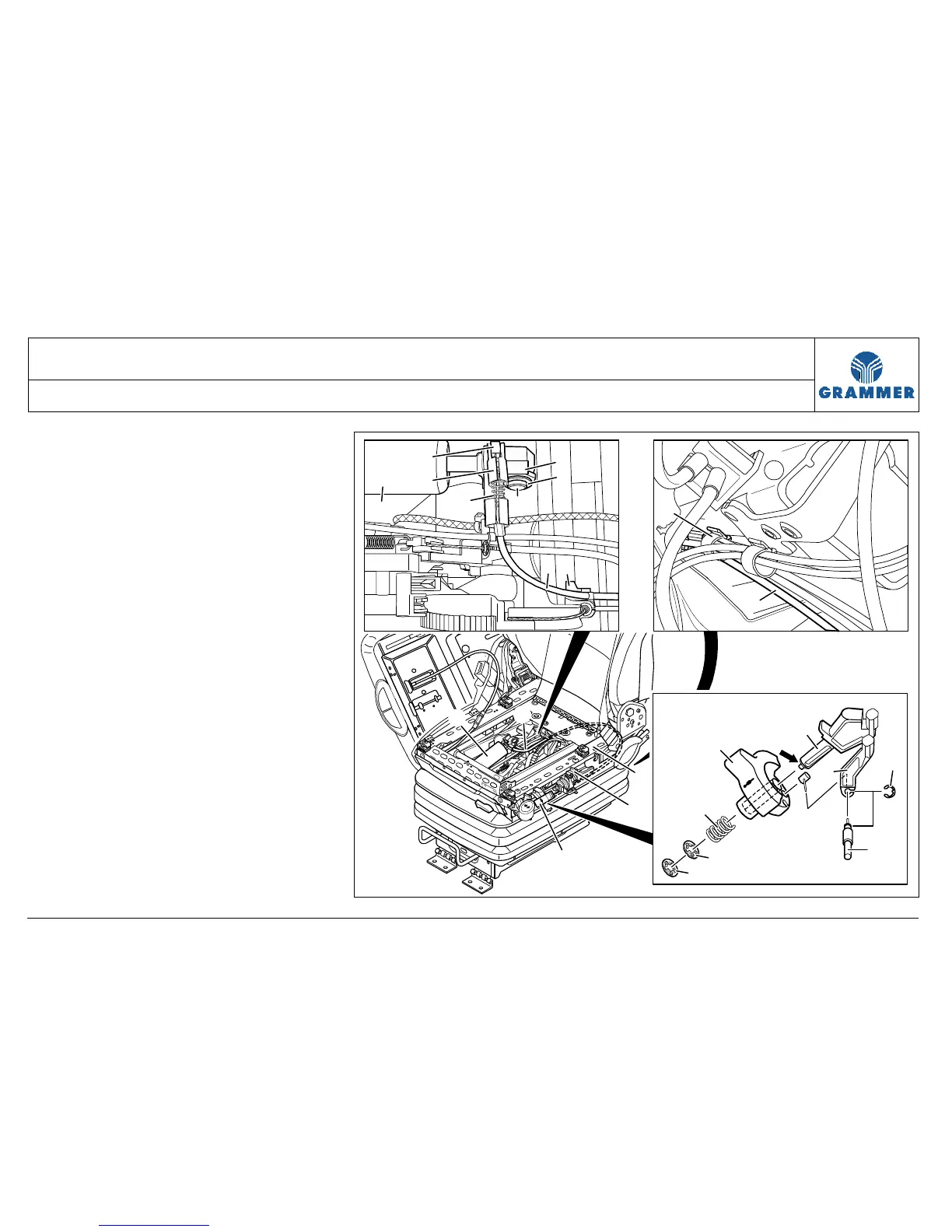

3.11 Bowden pull wire and lever for vertical shock absorber adjustment –
removal and installation
Page 2 of 7
REMOVAL / INSTALLATION TABLE OF CONTENTS
(14) Axial locking ring ................. replace
(15) Compression spring
(16) Holder (lever for vertical shock
absorber)
(17) Lock washer
(18) Holder (Bowden pull wire)
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
2 Remove the left covering in position
for repair (Chapter 3.4).
