3.11 Bowden pull wire and lever for vertical shock absorber adjustment –
removal and installation
Page 6 of 7
REMOVAL / INSTALLATION TABLE OF CONTENTS

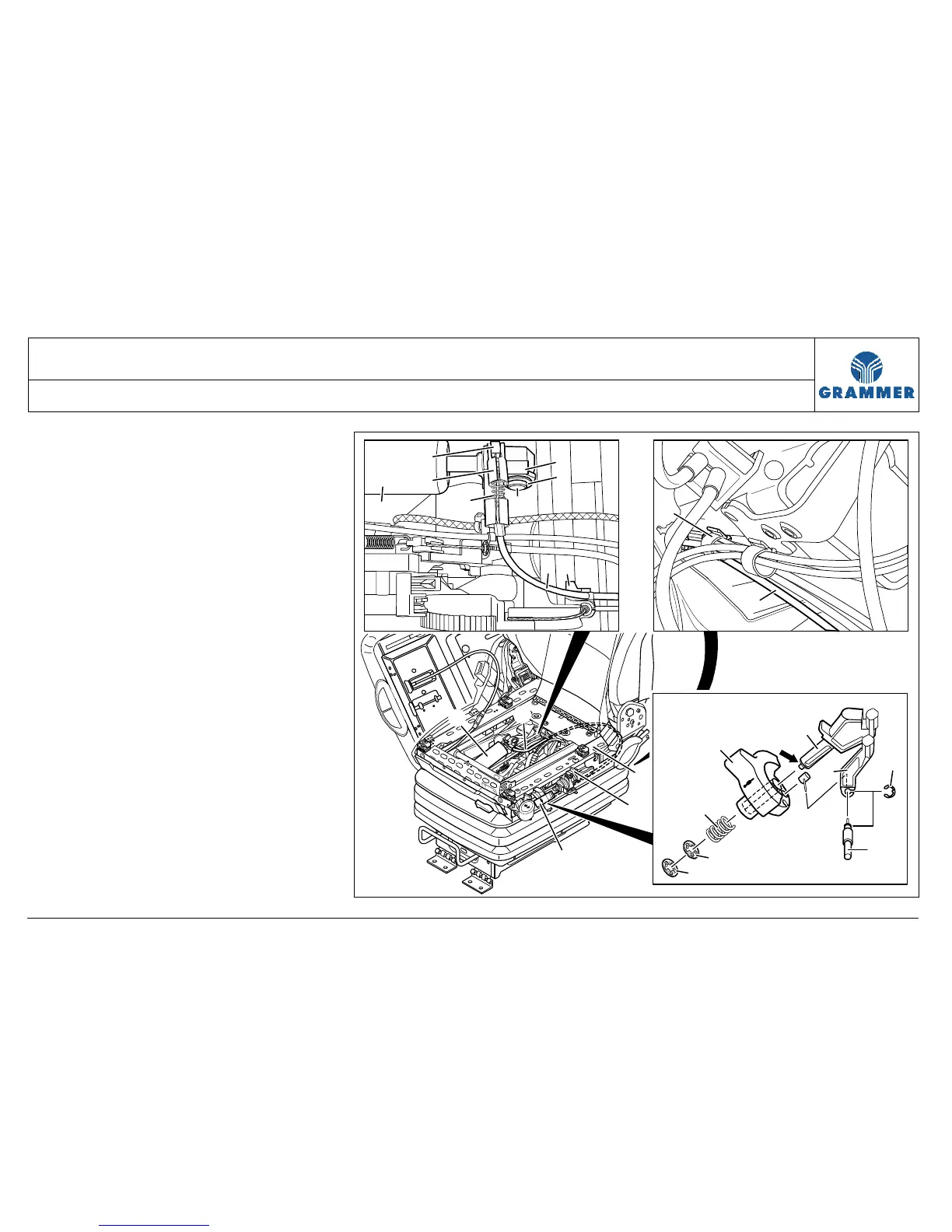

15 Remove the Bowden pull wire (1) at
the holder (18).
16 Hang out the Bowden pull wire (1) at
the lever for vertical shock absorber
adjustment (3) and remove it.
Installation notes:
• Hang the Bowden pull wire (1) into
the front hole of the lever for vertical
shock absorber adjustment (3).
• Adjust the new Bowden pull wire
(1) to the length of the old one (1)
(excess length of the wire).
• Check the Bowden pull wire upon
installation (see Chapter 3.10).
