Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

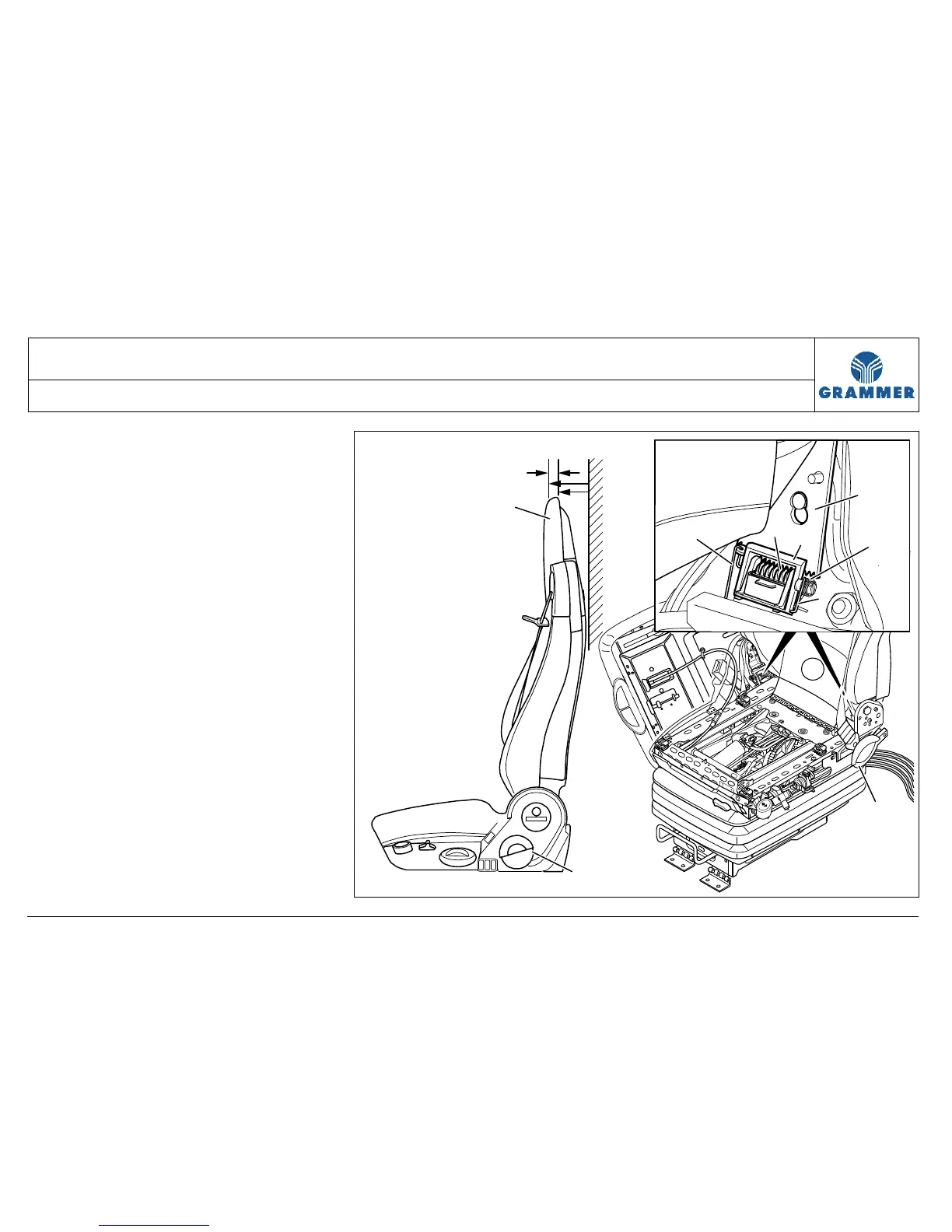

3.12 Bowden pull wire for backrest adjustment –
inspection and adjustment
Page 2 of 5
INSPECTION ADJUSTMENT TABLE OF CONTENTS
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
Inspection
2 Apply load to the backrest (8) and
lock/unlock it several times using the
lever for backrest adjustment (12) and
check the following:
• easy running of the Bowden pull
wires (1, 2)
• contamination of the lock (3)
• synchronous locking of the left and
right side without jamming
3 Check the backrest clearance at the
upper edge of the backrest (8).
Specified value: no clearance or only
minimal clearance "A".
8
12
A
12
2195
8
6
7
1,2
3
5
4
