Grammer MSG 90.6PG - Page 152

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.12 Bowden pull wire for backrest adjustment –
inspection and adjustment
Page 3 of 5
INSPECTION ADJUSTMENT TABLE OF CONTENTS

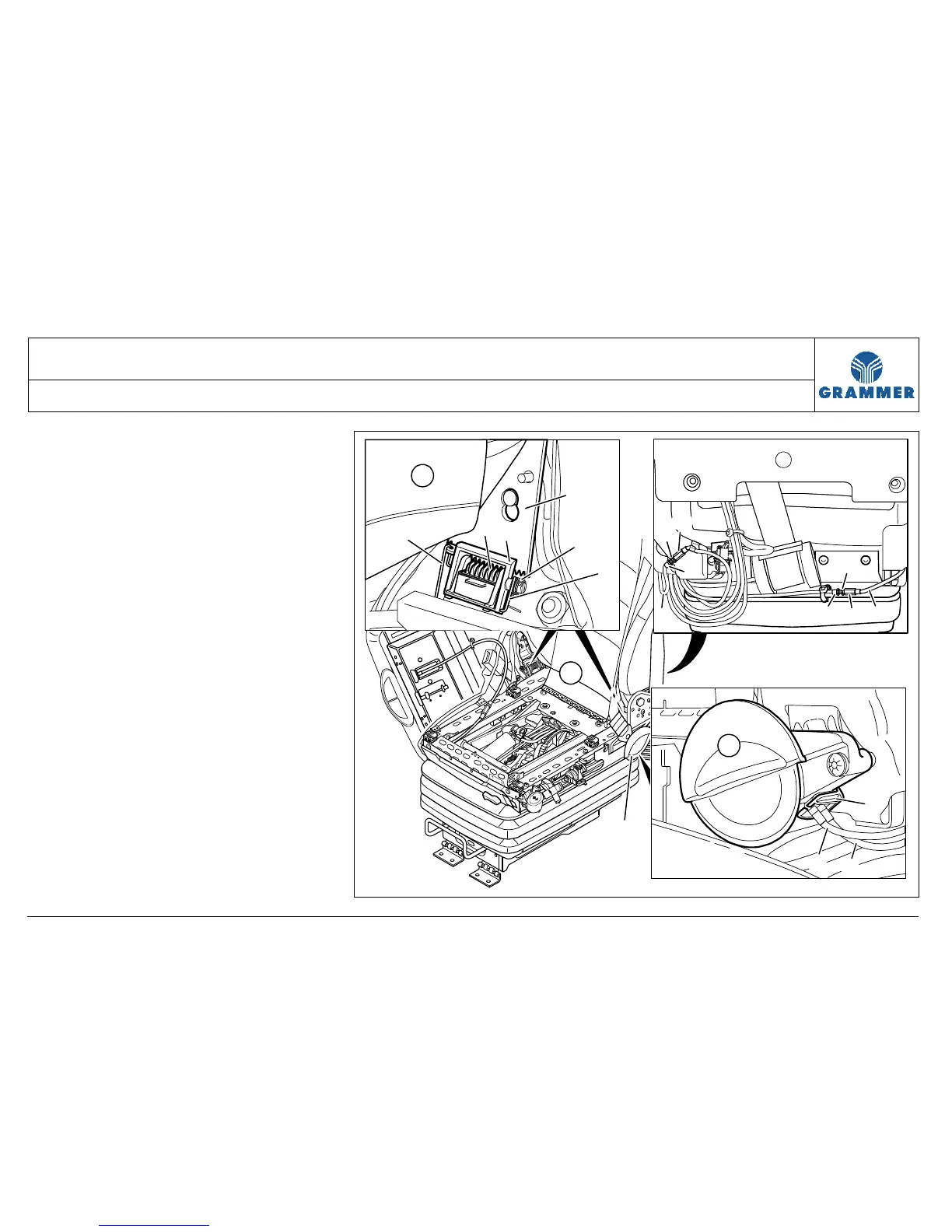

4 Carefully pivot the backrest (8)
forwards against the stop.
5 Check the adjustment of the left and
right lock (3):
• The lever for backrest adjustment
(12) must lie flat against the holder
(13).
• The gear segment of the lock (3)
must fully engage with the tooth sheet
(4) (no clearance).
• The lock (3) must protrude by at
least 1 mm at the gear segment.
• The retaining spring (5) must tighten
the Bowden pull wire (1, 2).
Adjustment
1 Remove the left covering in position
for repair (Chapter 3.4).
2 Carefully detach the rear covering at
the right covering (see Chapter 3.5).
2194
13
12
1
2
8
6
1,2
3
5
4
7
12
8
11
10
9
8
2
1
11
10
9
