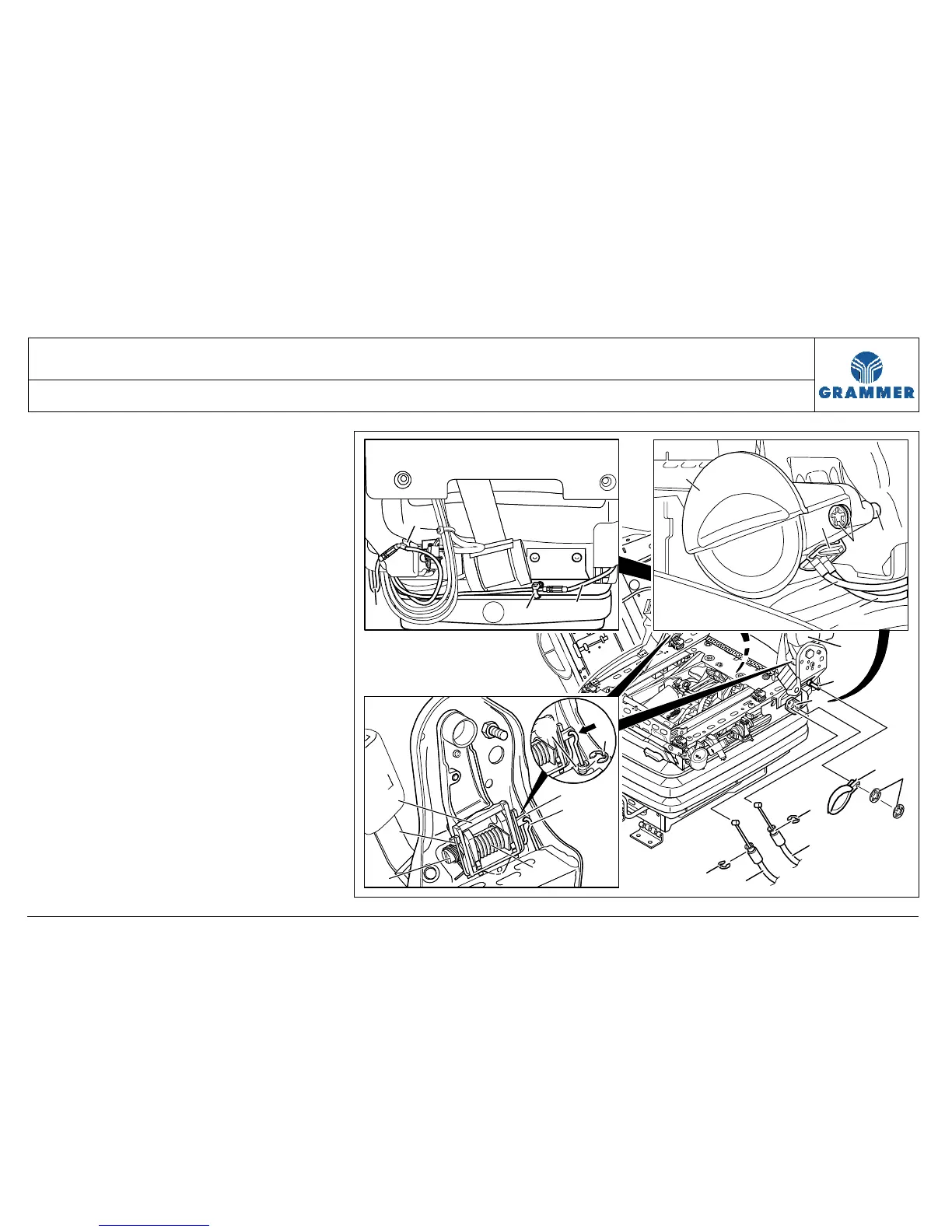

3.13 Bowden pull wire and lever for backrest adjustment –
removal and installation
Page 2 of 6
REMOVAL / INSTALLATION TABLE OF CONTENTS
(13) Torsion spring
(14) Cable tie
(15) Clamp
(16) Bellows
(17) Z-section
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
2 Remove the left covering in position
for repair (Chapter 3.4).
3 Carefully detach the rear covering at
the right covering (see Chapter 3.5).
