3.13 Bowden pull wire and lever for backrest adjustment –
removal and installation
Page 3 of 6
REMOVAL / INSTALLATION TABLE OF CONTENTS
Removal and installation

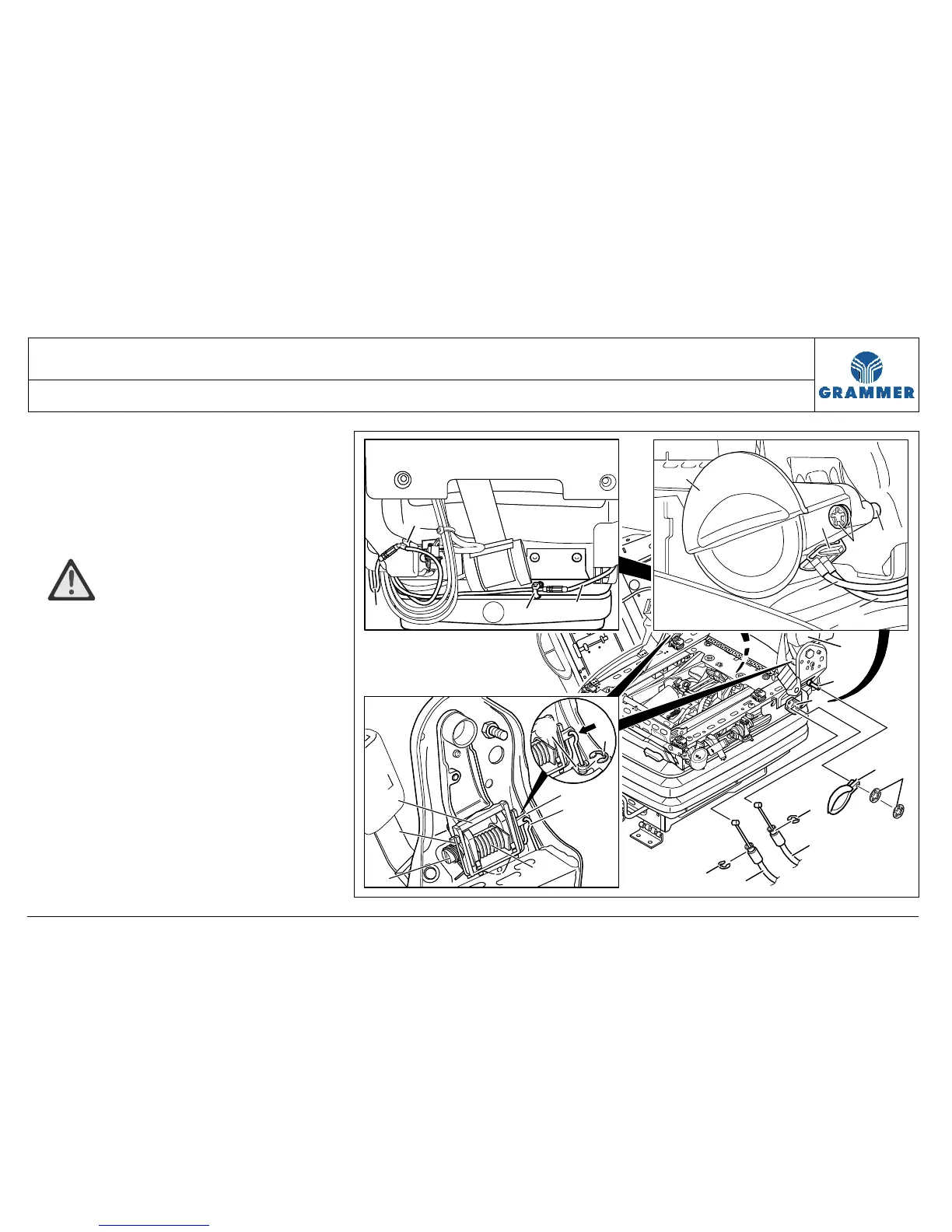

4 Mark the point where the right
Bowden pull wire (2) is fastened to the
bellows (16) by means of cable tie
(14) and remove the cable tie (14).
Installation notes:
ATTENTION Malfunction!
• Loosely fix the right Bowden pull
wire (2) by means of cable tie (14) and
make sure it is not distorted.
• Check the Bowden pull wire
adjustment, readjust if necessary
(Chapter 3.12).
5 Detach the left Bowden pull wire (1) at
the clamp (15).
