Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.13 Bowden pull wire and lever for backrest adjustment –
removal and installation
Page 4 of 6
REMOVAL / INSTALLATION TABLE OF CONTENTS

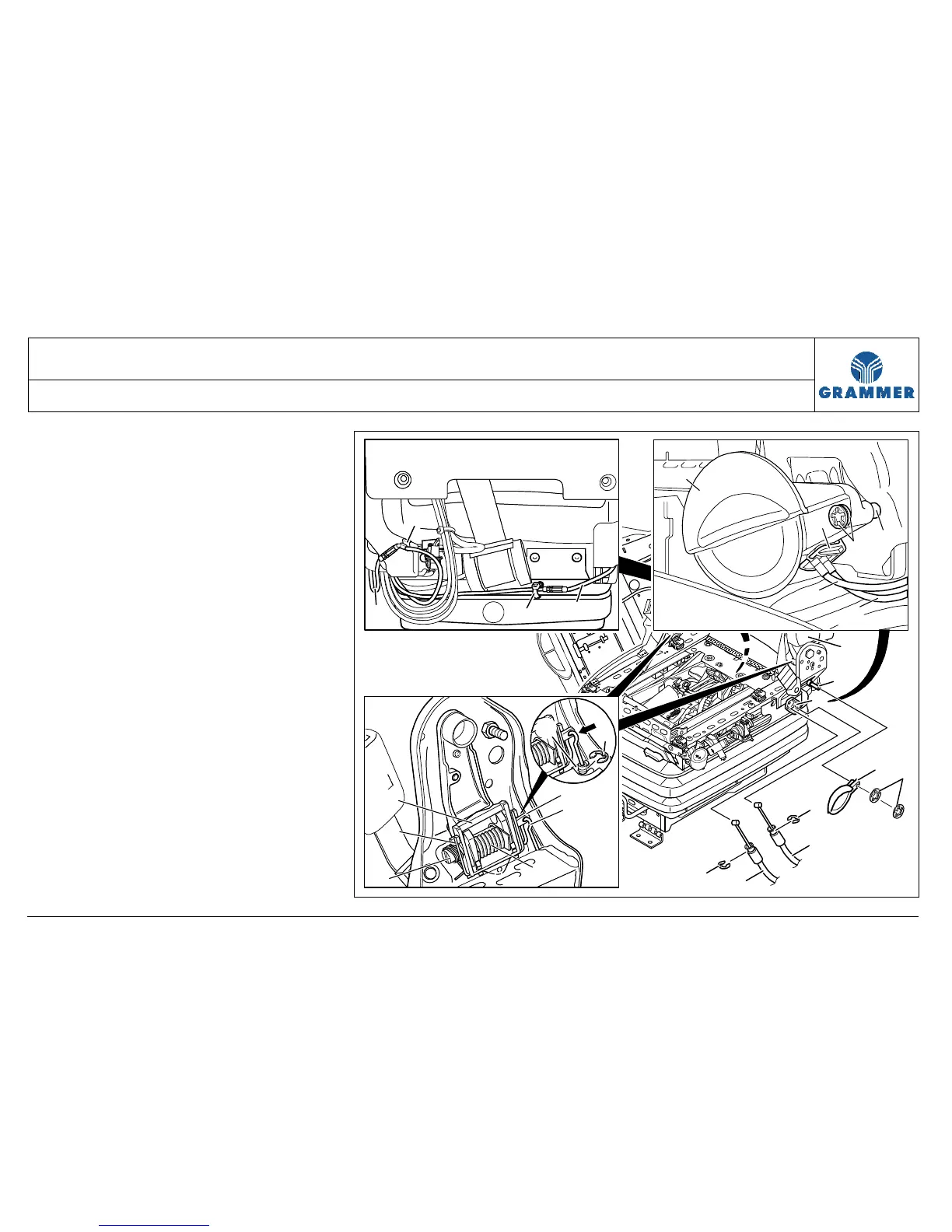

6 Fold the backrest (3) forward until the
lock (10) is free.
7 Detach the left Bowden pull wire (1) at
the catch element (11) of the left lock
(10) and detach the right Bowden pull
wire (2) at the catch element (11) of
the right lock (10).
Note:
The hook (arrow) of the respective
Bowden pull wire (1, 2) must point to
the outside.
8 Loosen the lock washer (9) at the left
Bowden pull wire (1) and the lock
washer (9) at the right Bowden pull
wire (2).
9 Detach the left Bowden pull wire (1)
and the right Bowden pull wire (2) at
the Z-section (17).
7
1
2
4
6
5
11
12
13
10
11
9
1,2
7
4
3
5
6
2
8
1
8
15
17
16
14
2
1
