Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.14 Bowden pull wire for locking mechanism of the fore/aft isolator –
inspection and adjustment (delivery option)
Page 2 of 5
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
Inspection

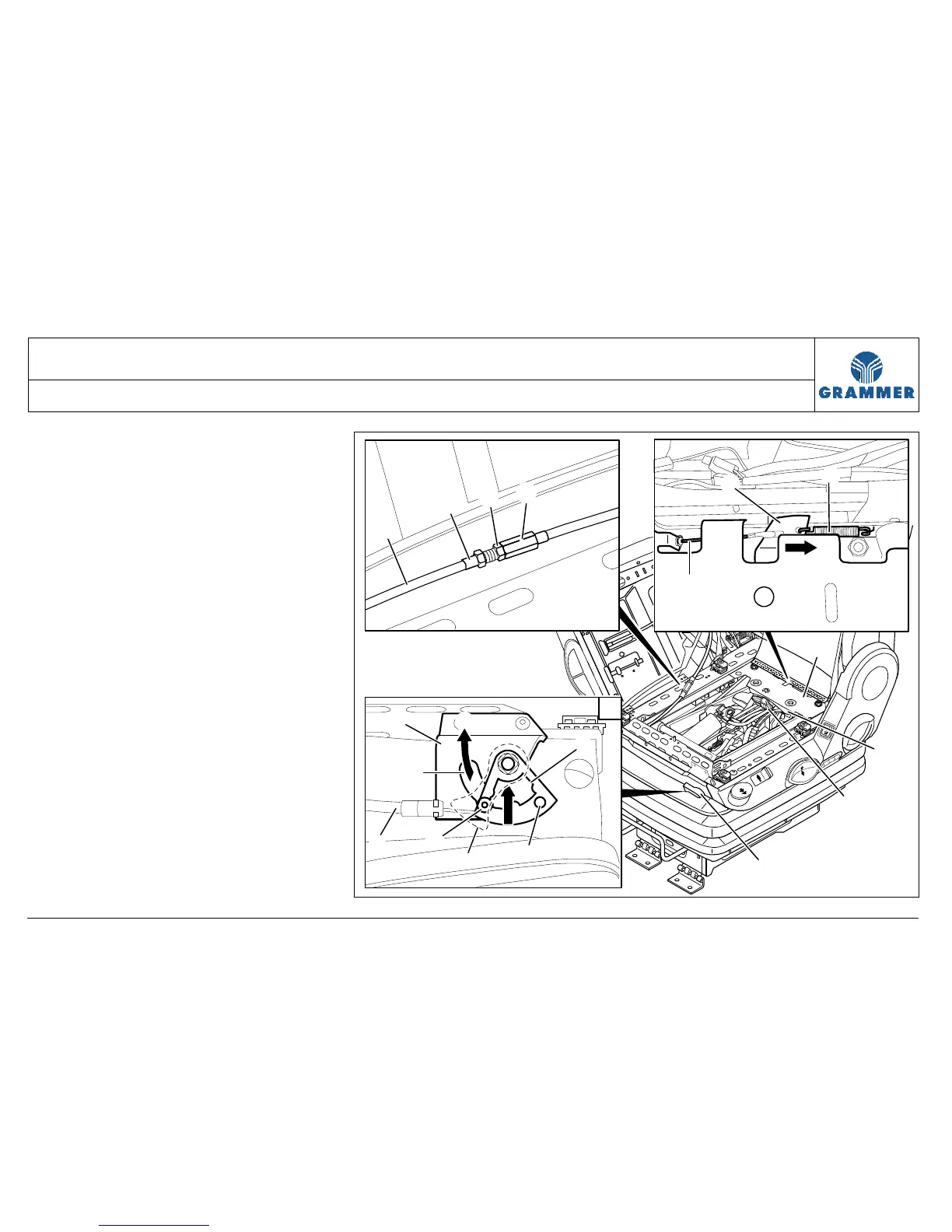

2 Turn the lever for the fore/aft isolator
(1) downwards as far as possible
(unlocked).
It should be possible to move the
upper suspension part (9) horizontally
without getting stuck.
3 Checking the locking function of
the fore/aft isolator (A):
3.1 Lift the eccentric (3) with the lever
for the fore/aft isolator (1) (arrow
direction "a") until the lock (5) is
released from the longitudinal hole
(6) and the eccentric (3) turns in
arrow direction "b".
2201
b
9
7
6
2
1
13
12
3
11
10
1
9
14
4
4
4
a
8
15
e
A
5
