3.15 Bowden pull wire for locking mechanism of the fore/aft isolator –
removal and installation (delivery option)
Page 1 of 4

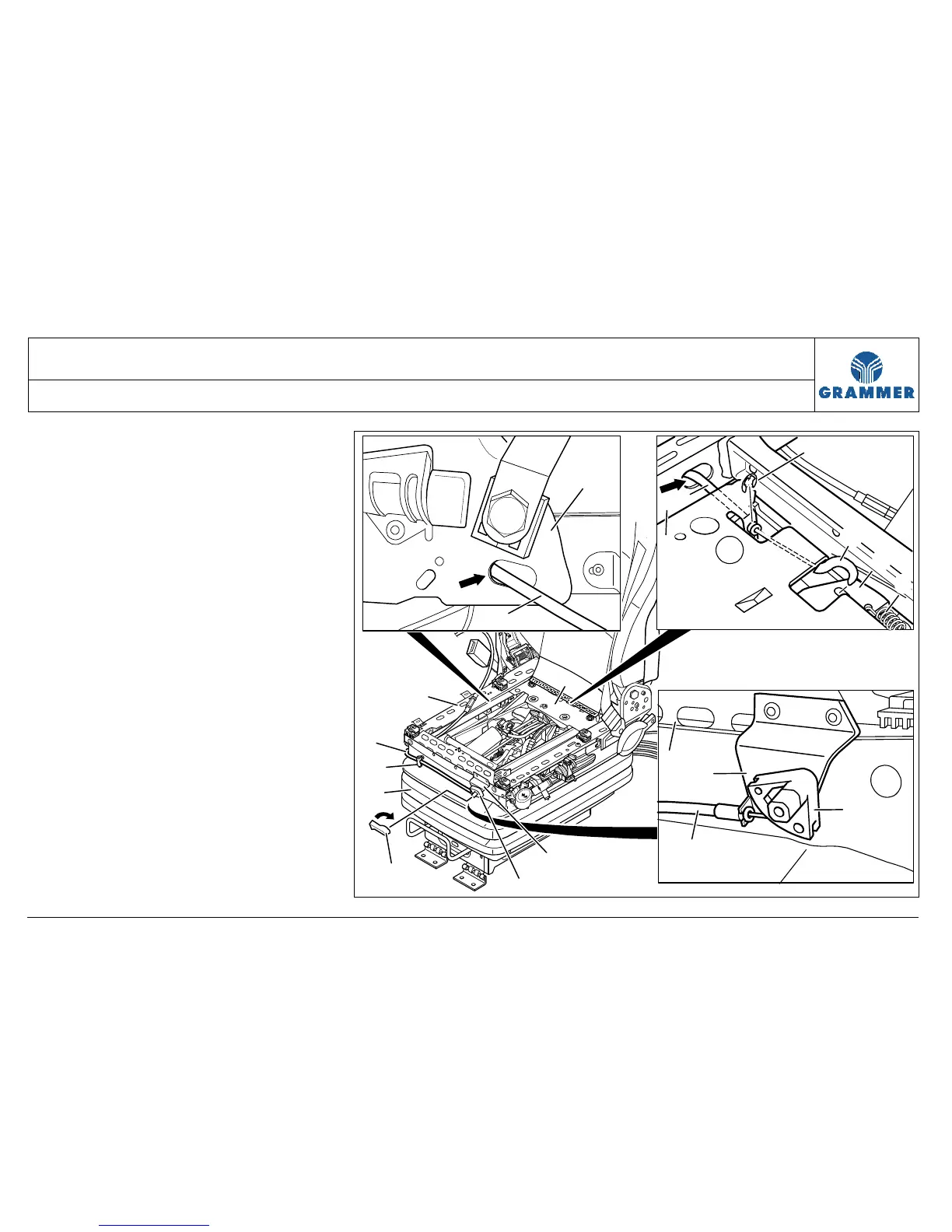

REMOVAL / INSTALLATION TABLE OF CONTENTS
(1) Bowden pull wire for locking
mechanism of the fore/aft isolator
(2) Lock washer
(3) Upper suspension part
(4) Support
(5) Eccentric
(6) Stop lever
(7) Retracting spring
(8) Seat frame
(9) Lever for fore/aft isolator
(10) Cable tie
(11) Bellows
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
2 Remove the left covering in position
for repair (Chapter 3.4).
