3.16 Bowden pull wire for seat angle adjustment –
inspection and adjustment
Page 1 of 4
INSPECTION ADJUSTMENT TABLE OF CONTENTS

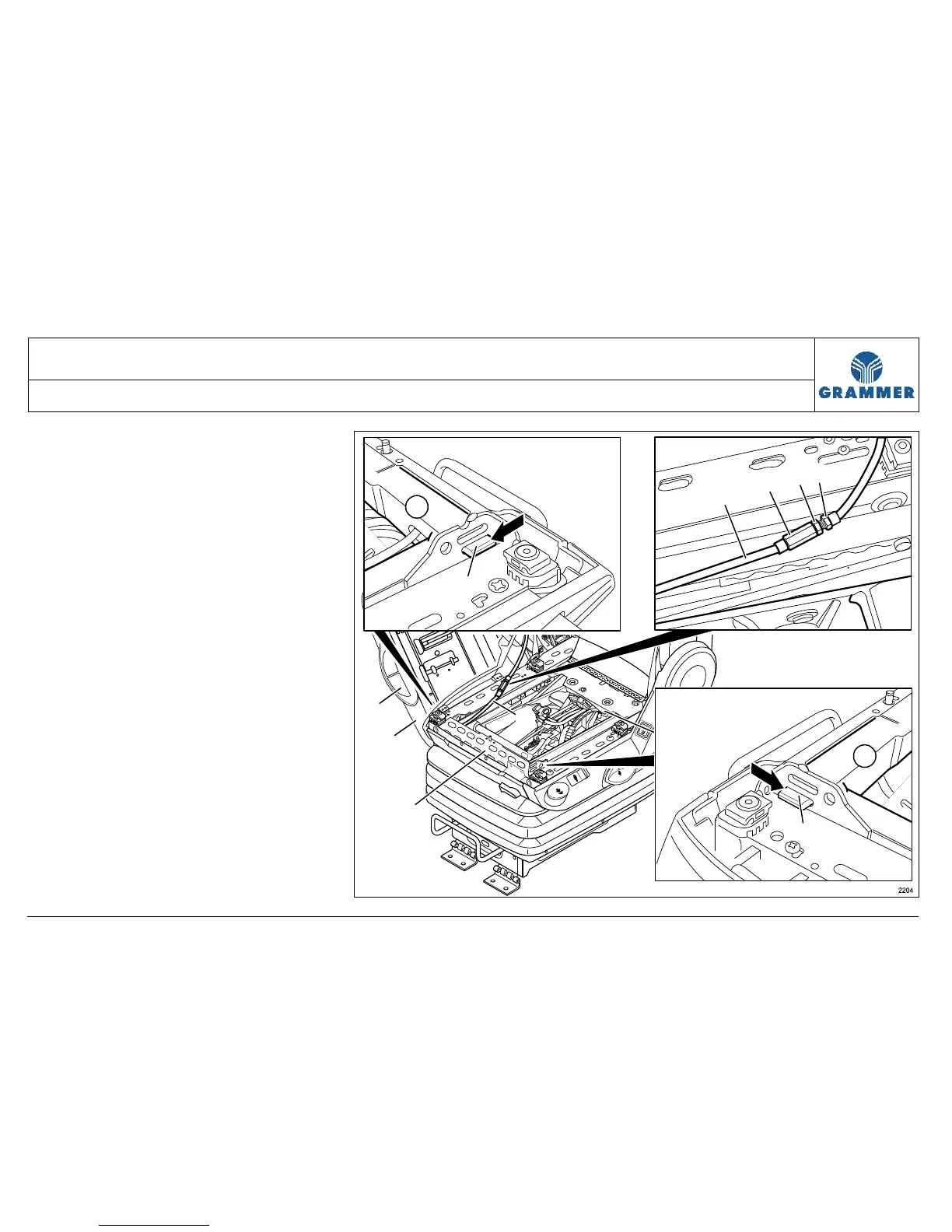

(1) Lever for seat angle adjustment
(2) Seat cushion
(3) Bowden pull wire for seat angle
adjustment
(4) Right latch
(5) Left latch
(6) Regulating screw
(7) Counternut
(8) Nut
(9) Seat frame
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
