3.16 Bowden pull wire for seat angle adjustment –
inspection and adjustment
Page 2 of 4
INSPECTION ADJUSTMENT TABLE OF CONTENTS
Inspection

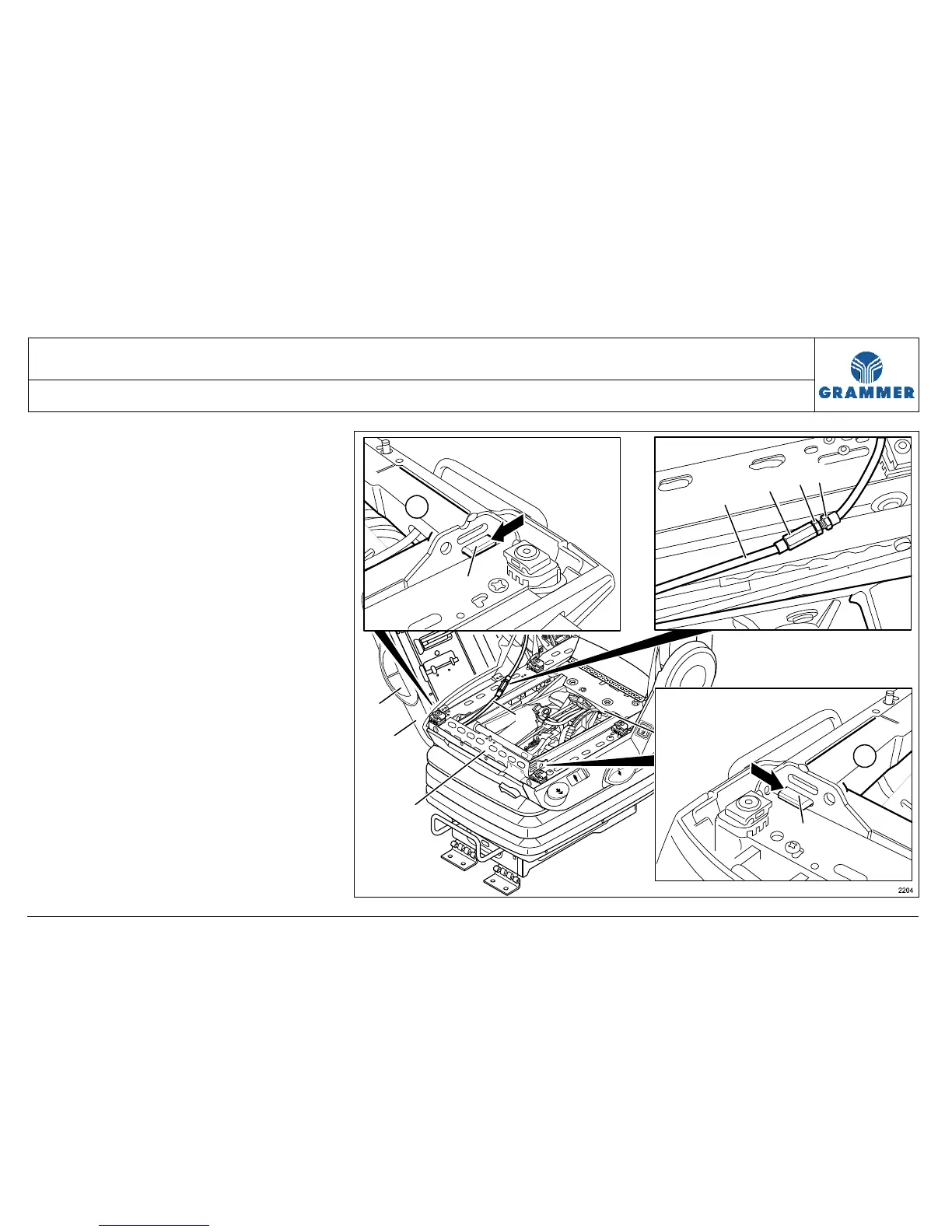

2 Apply load to the seat frame (9) and
lock/unlock the lever for seat angle
adjustment (1) several times. Then,
check the following:
• easy running of the Bowden pull
wire (3)
• wear of the lever for seat angle
adjustment (1)
• contamination of the right (4) and left
latch (5)
• synchronous locking of the latches
(4, 5) with the seat frame (9).
