3.17 Bowden pull wire for seat angle adjustment with locking mechanism –
removal and installation
Page 5 of 9
REMOVAL INSTALLATION TABLE OF CONTENTS
Installation

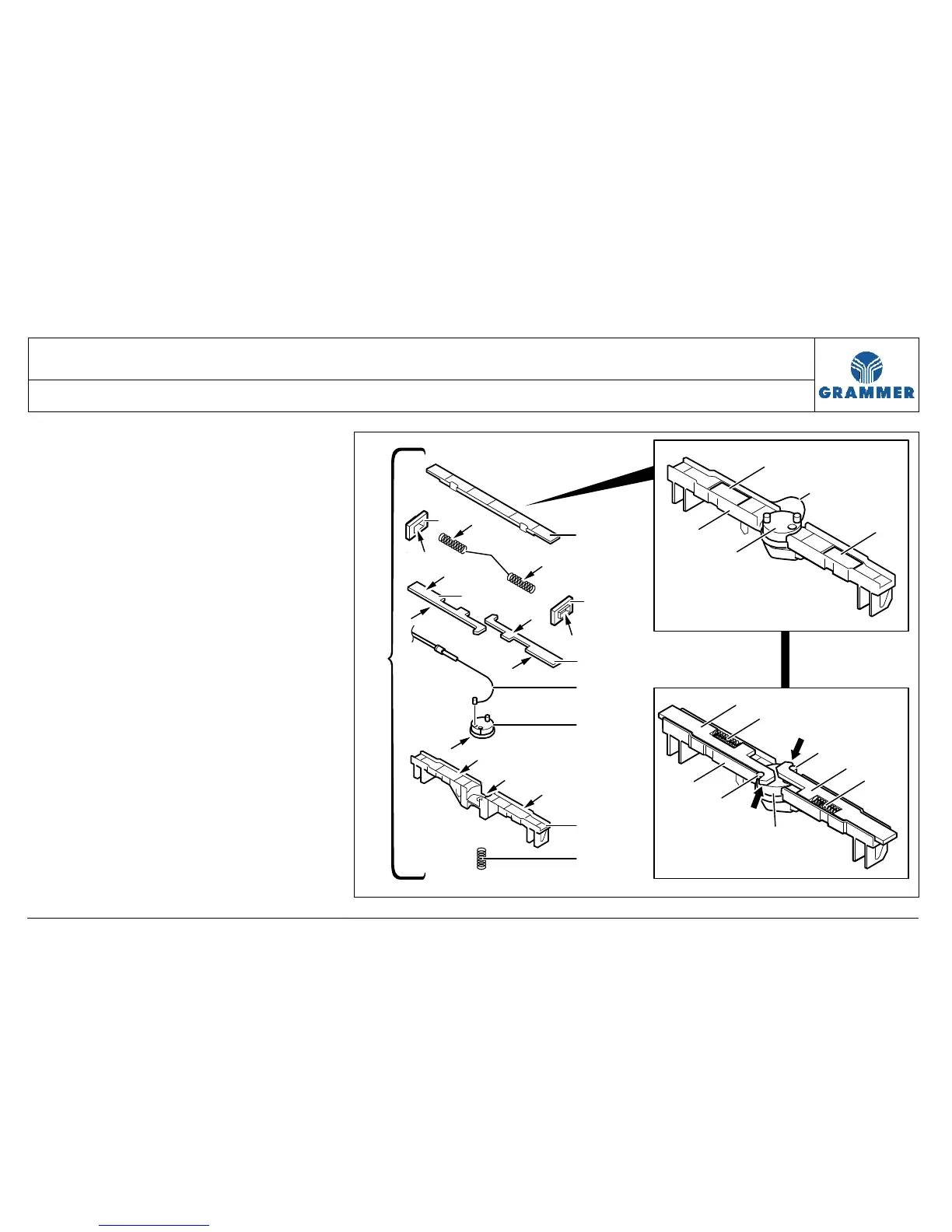

1 Adjust the new Bowden pull wire (5) to
the length of the old one (excess
length of the wire).
2 Apply acid-free multi-purpose lubricant
(F) to the housing (3) and to the catch
element (4).
3 Hang the Bowden pull wire (5) into the
hole (marked with "L") of the catch
element (4) and insert the catch
element (4) into the housing (3).
4 Apply acid-free multi-purpose lubricant
(F) to the latches (6).
5 Turn the catch element (4) in the
housing (3) as far as possible and
insert latches (6) into the housing (3).
