3.17 Bowden pull wire for seat angle adjustment with locking mechanism –
removal and installation
Page 4 of 9
REMOVAL INSTALLATION TABLE OF CONTENTS

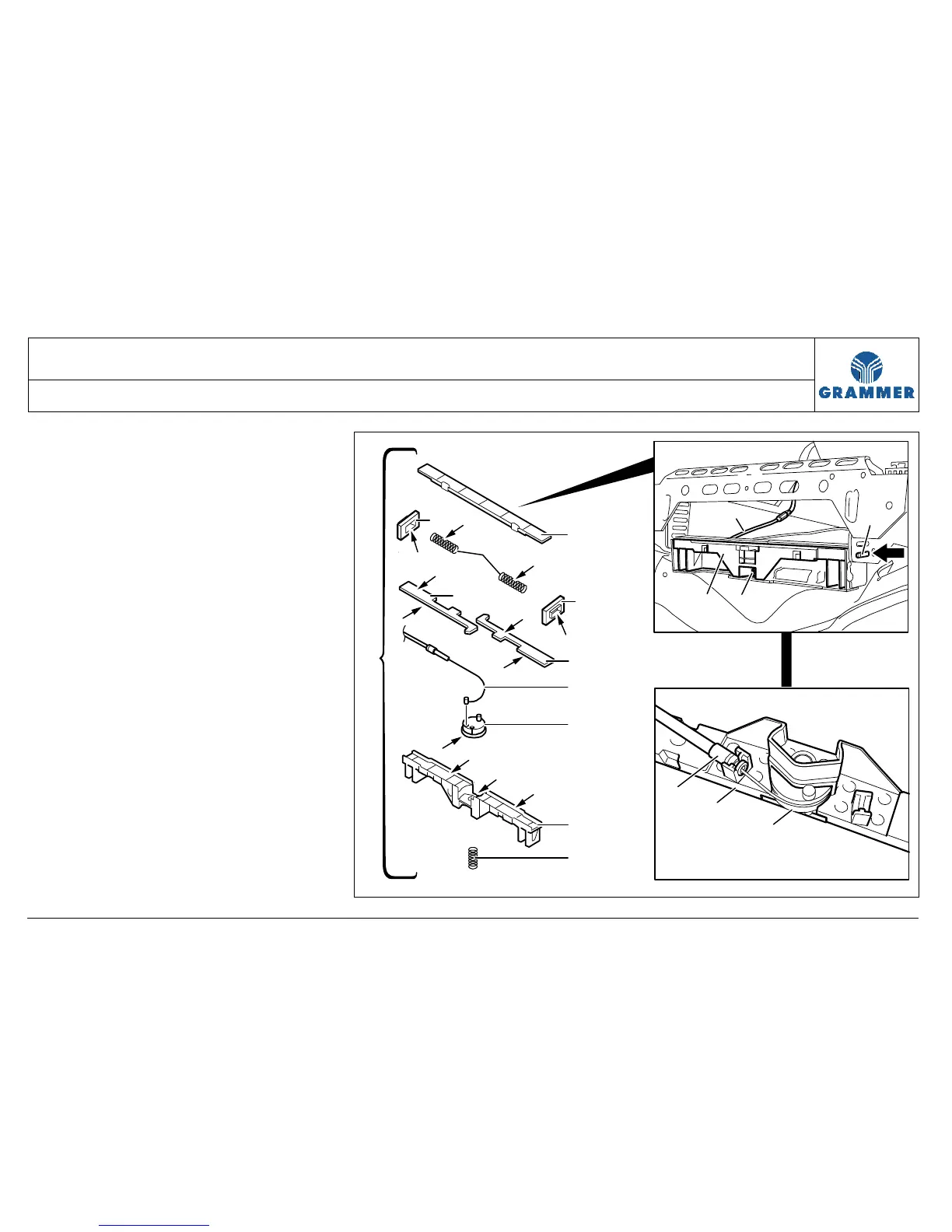

10 Remove the cover (9) at the
housing (3).
11 Remove two latches (6) with mit
compression springs (8) from the
housing (3).
12 Pull the catch element (4) out of the
housing (3) and take off the Bowden
pull wire (5) at the catch element (4).
13 Take off the Bowden pull wire (5)
from the housing (3).
