Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.17 Bowden pull wire for seat angle adjustment with locking mechanism –
removal and installation
Page 3 of 9
REMOVAL INSTALLATION TABLE OF CONTENTS
Removal
6 WARNING Risk of crushing!
Bring the seat into the highest position
and secure the swinging structure to
the front plastic rollers of the lower
suspension part by means of
appropriate spacers.
7 Operate the seat angle adjustment
and move the seat to the highest
position.
8 Remove the seat cushion and the
lever for seat angle and seat depth
adjustment (Chapter 3.2).

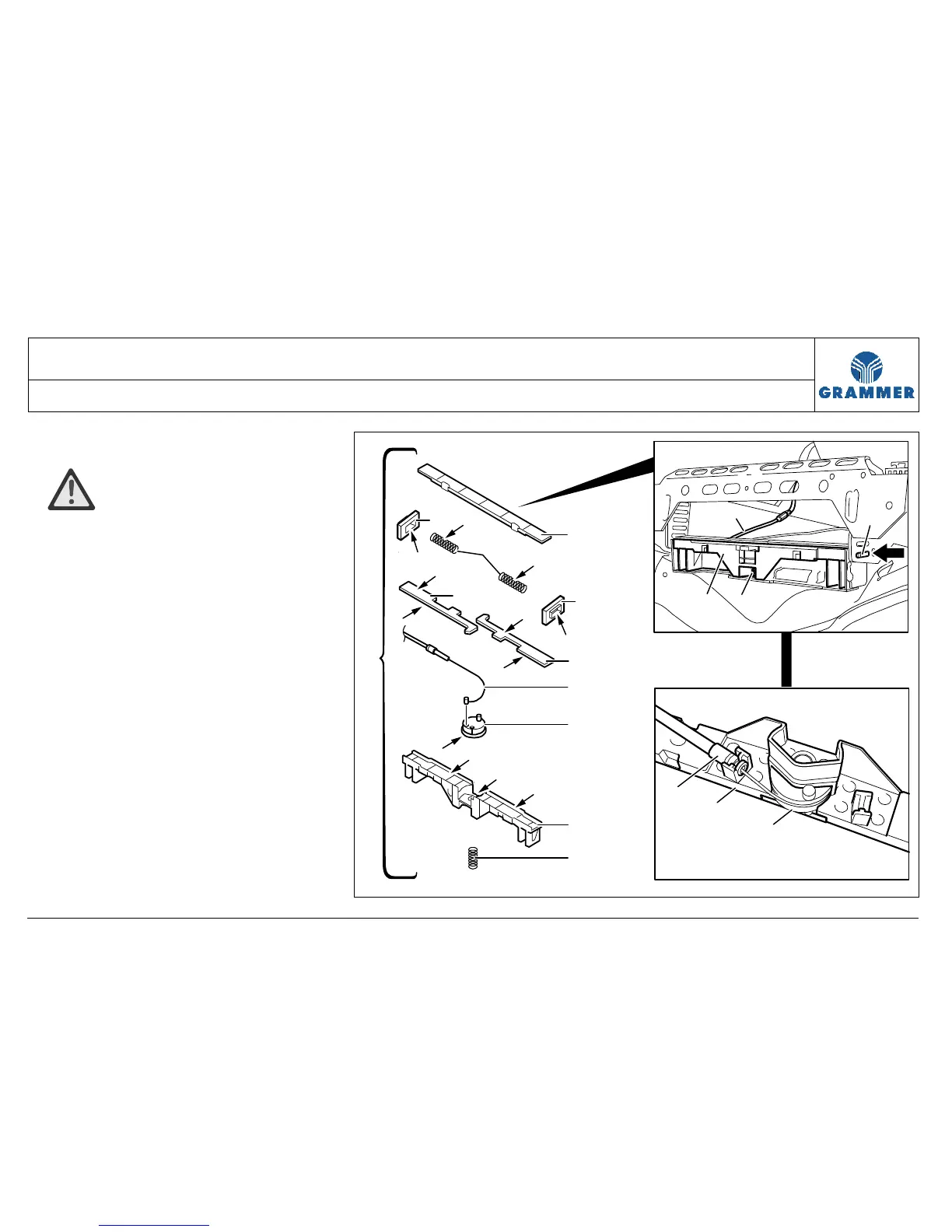

9 Press one latch (6) inward (arrow) and
pull out the entire locking mechanism
(1) with the Bowden pull wire (5) and
the compression spring (2) forward on
the unlocked side.
F
7
7
F
F
F
F
F
F
F
F
F
F
F
9
3
2
6
6
8
1
5
4
5
1
2
6
5
4
3
