Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

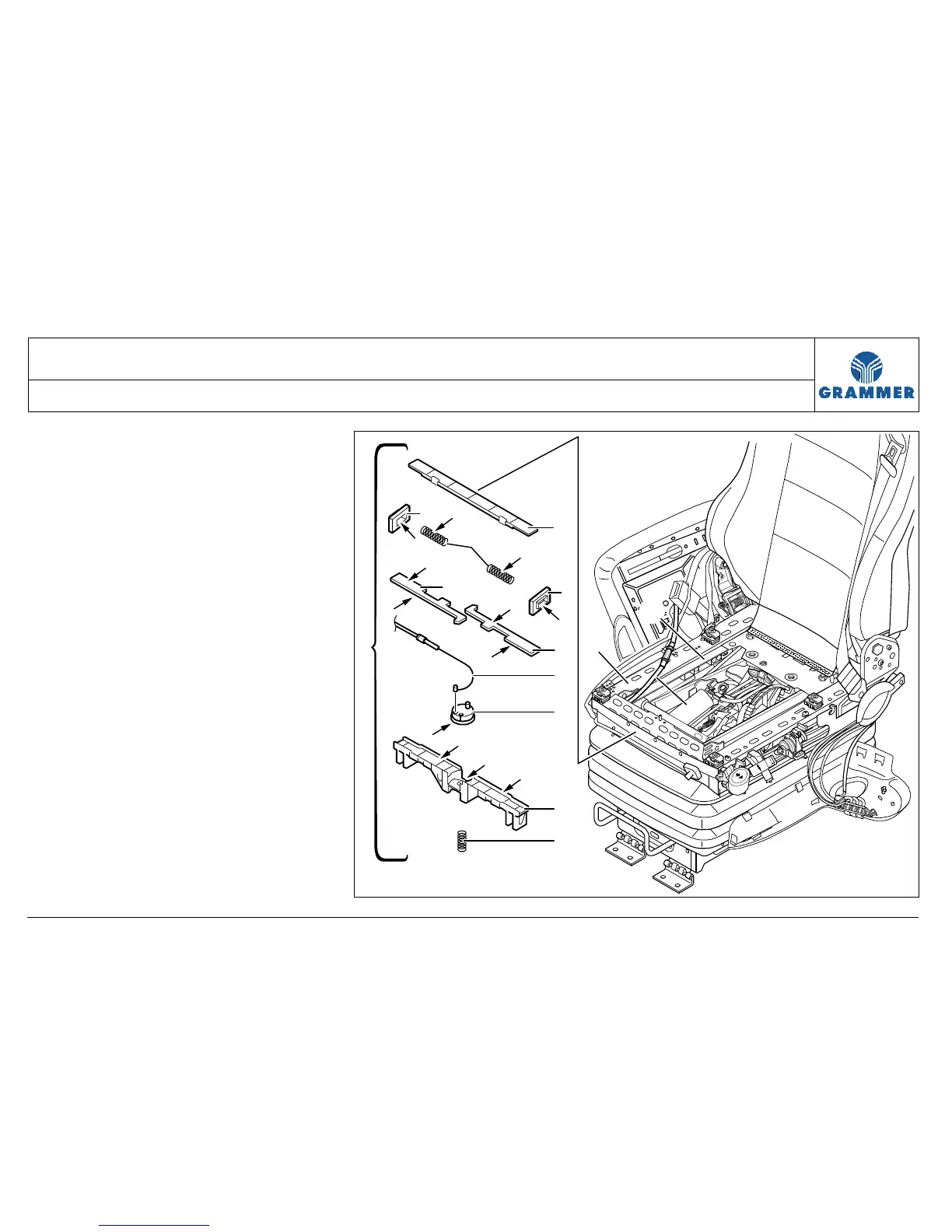

3.17 Bowden pull wire for seat angle adjustment with locking mechanism –
removal and installation
Page 2 of 9
REMOVAL INSTALLATION TABLE OF CONTENTS
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
2 Remove the left covering in position
for repair (Chapter 3.4).
3 Remove the front covering (see
Chapter 3.5).
4 Seat with fore/aft isolator:
Remove the cable tie by means of
which the Bowden pull wire for the
fore/aft isolator is fastened to the front
of the bellows (see Chapter 3.6).
5 Remove two bellows pins at the front
of the seat frame and detach the
bellows at the two supports (see
Chapter 3.6).
Press the bellows down and fix it.
10
11
2205
F
7
7
F
F
F
F
F
F
F
F
F
F
F
9
3
2
6
6
8
5
5
4
1
