Grammer MSG 90.6PG - Page 174

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

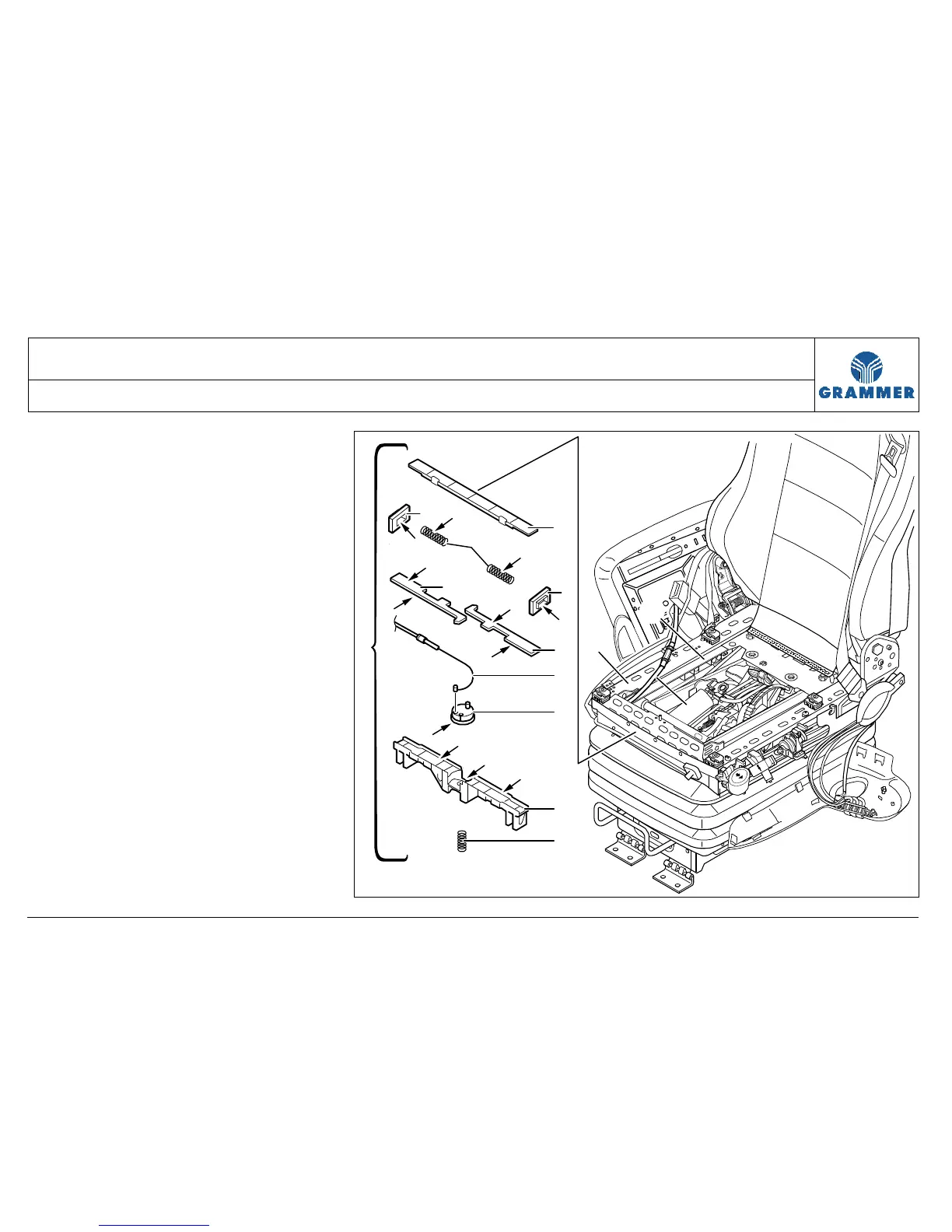

3.17 Bowden pull wire for seat angle adjustment with locking mechanism –
removal and installation
Page 1 of 9
REMOVAL INSTALLATION TABLE OF CONTENTS
(1) Locking mechanism (complete)
(2) Compression spring
(3) Housing ........................... to grease
(4) Catch element ................. to grease
(5) Bowden pull wire for seat angle
adjustment
(6) Latch ................................ to grease
(7) Latch guide ...................... to grease
(8) Compression spring ......... to grease
(9) Cover
(10) Seat frame
(11) Upper suspension part
