Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.16 Bowden pull wire for seat angle adjustment –
inspection and adjustment
Page 4 of 4

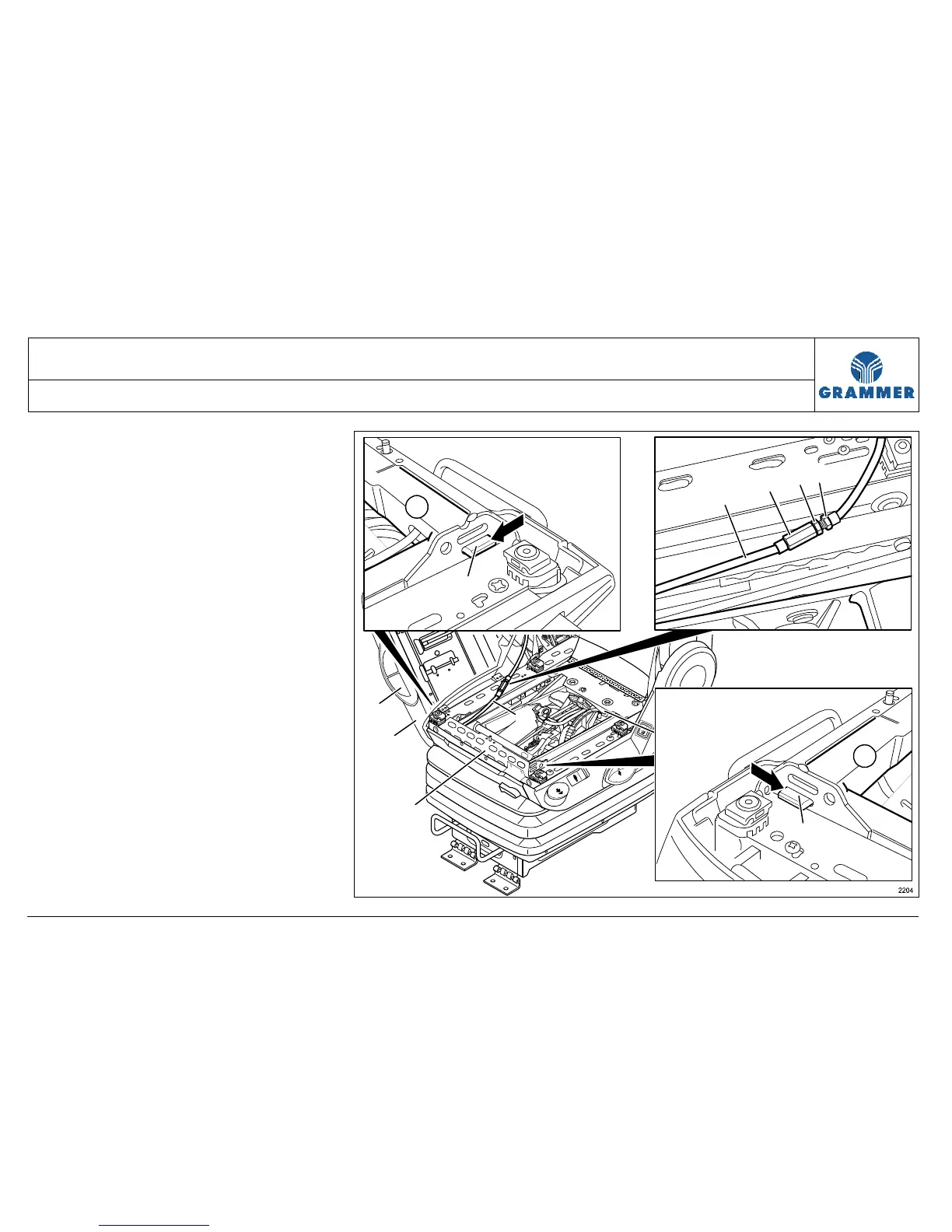

Adjustment
1 Adjust the seat to the middle
adjustment of the seat angle and lock
it in this position.
2 Loosen the counternut (7) and use the
regulating screw (6) to position the
latches (4, 5) so that they protrude at
least 1 mm from the cutouts (arrows)
in the seat frame (9) (basic setting).
3 Hold the nut (8) in position and secure
it by means of the counternut (7).
Note:
Make sure not to distort the Bowden
pull wire (3).
4 Lock/unlock the seat frame (9) several
times using the lever for seat angle
adjustment (1), check it for proper
functioning and readjust it, if
necessary.
5 Install the seat cushion (Chapter 3.1).
