3.17 Bowden pull wire for seat angle adjustment with locking mechanism –
removal and installation
Page 9 of 9
REMOVAL INSTALLATION TABLE OF CONTENTS

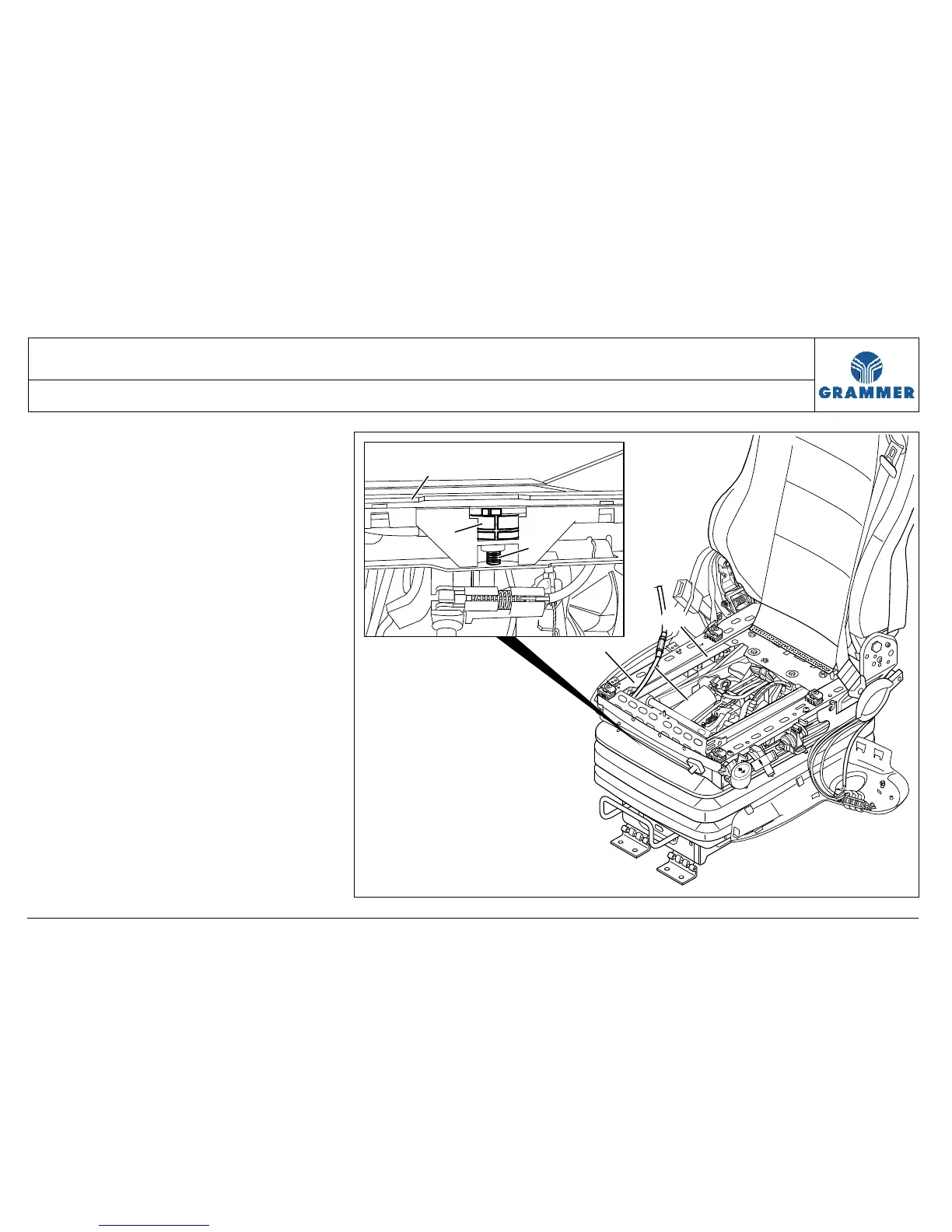

16 Install the compression spring (2)
under the bearing pins of the catch
element (4).
17 Adjust the seat angle to the lowest
position.
18 Install the bellows at the front of the
seat frame and hang it in at the two
supports (see Chapter 3.6).
19 Install the front covering (see
Chapter 3.5).
20 Check the Bowden pull wire for seat
angle adjustment and adjust it, if
necessary (Chapter 3.16).
21 Install the left covering
(Chapter 3.4).
22 Install the seat cushion
(Chapter 3.1).
2209
10
5
11
4
11
2
