3.19.2 Heater switch - removal and installation
(seat with climate control system)
Page 2 of 2
RAISE/ATTACH TABLE OF CONTENTS
Removal and installation

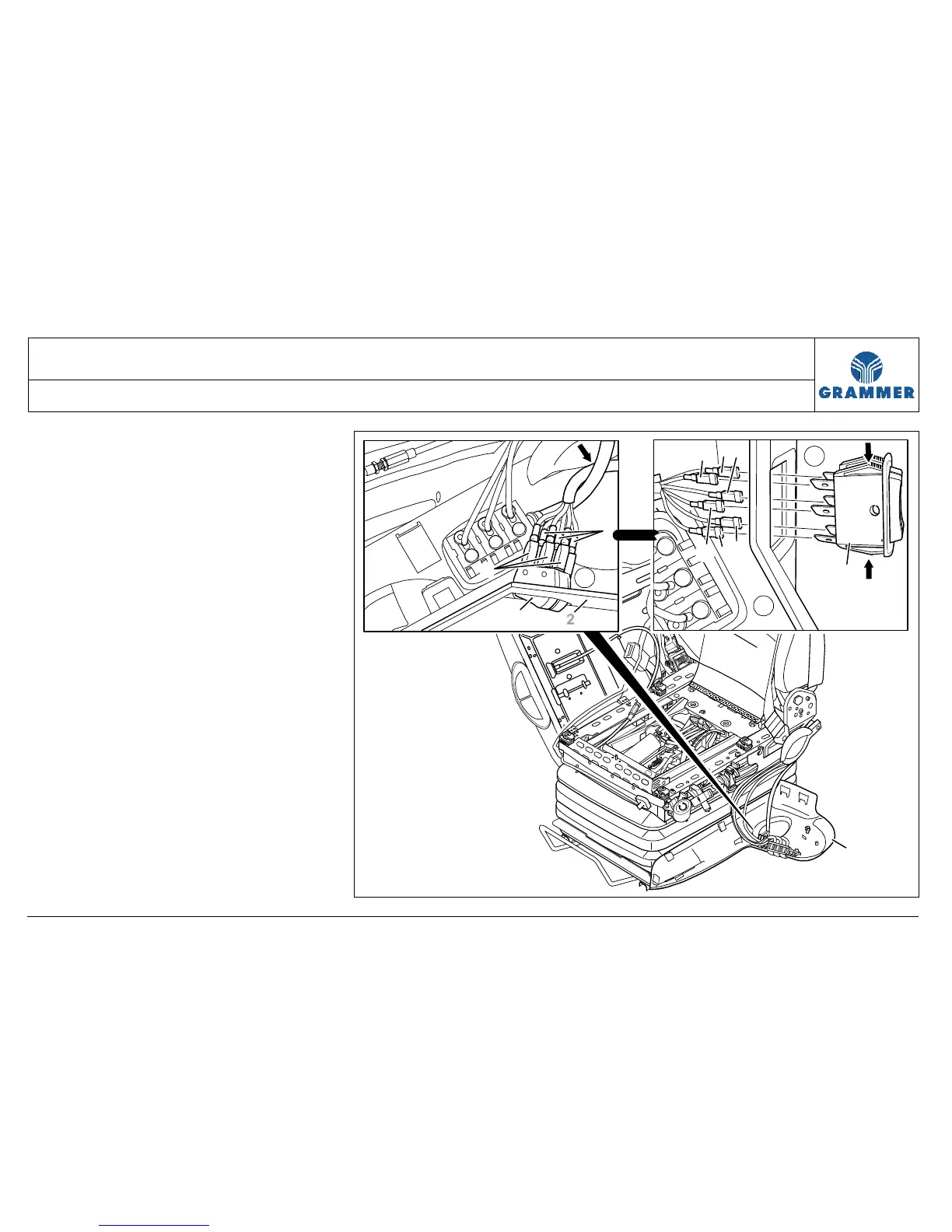

3 Mark two electrical connections (N)
(note the color of the cables) and
disconnect the electrical connections
(N) between the six connectors (3)
and the heater switch (1).
Installation note:
Re-establish the electrical connections
(N) according to the markings.
4 Compress the springs (arrows) at the
heater switch (1) and pull out heater
switch (1) from the left-hand
covering (2).
5 Re-install the components in the
reverse order of their removal.
