Grammer MSG 90.6PG - Page 192

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.20 Heater cable and belt tensioner cable (delivery option) –
removal and installation
Page 1 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS

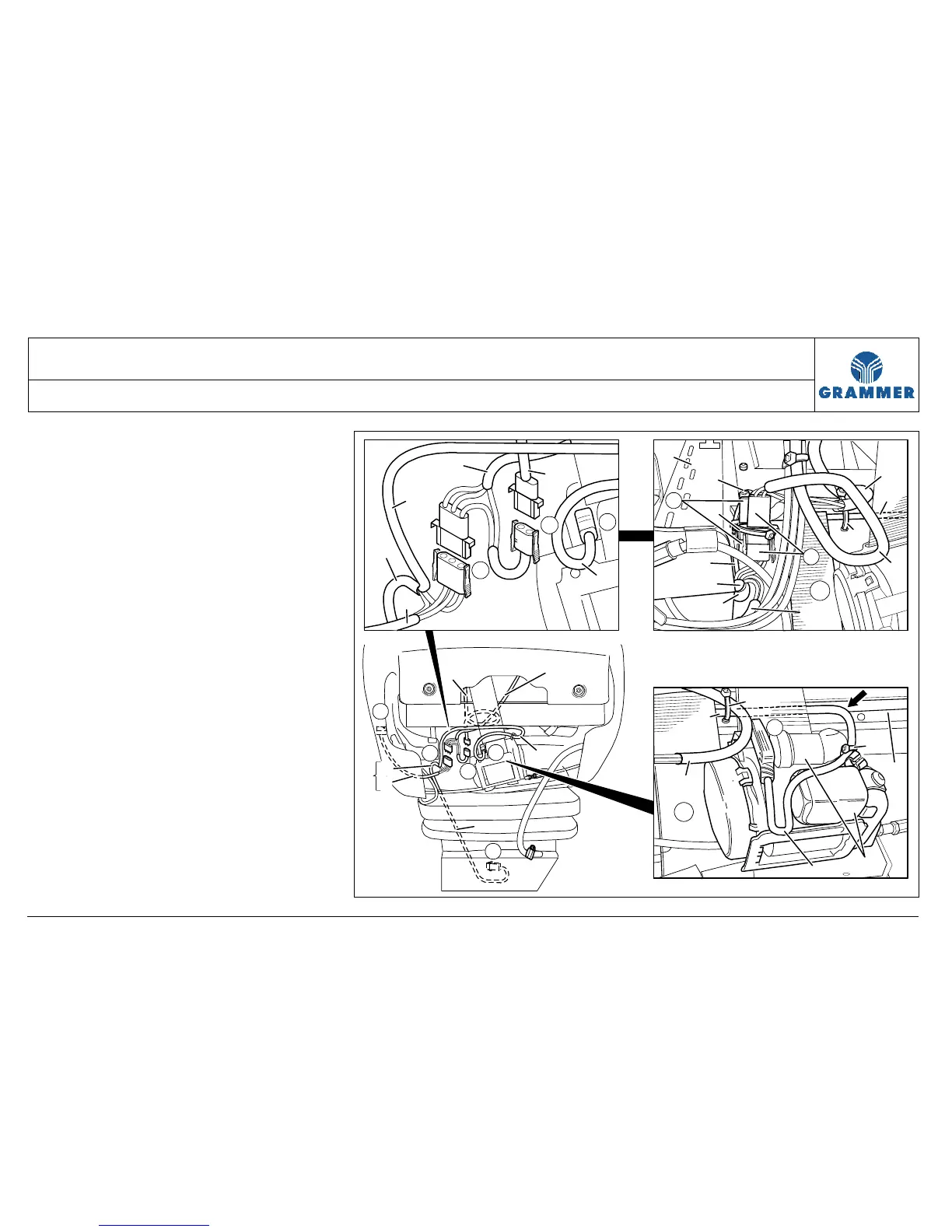

(1) Cable for backrest heater
(2) Cable for seat cushion heater
(3) Cable for heater switch
(4) Cable for vehicle connection
(5) Belt tensioner cable
(6) Heater cable = (3) + (4)
(7) Belt tensioner
(8) Cable tie
(9) Seat frame
(10) Cable tie
(11) Secondary belt
(12) Cable tie
(13) Cable tie
(14) Clip
