Grammer MSG 90.6PG - Page 193

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.20 Heater cable and belt tensioner cable (delivery option) –
removal and installation
Page 2 of 8

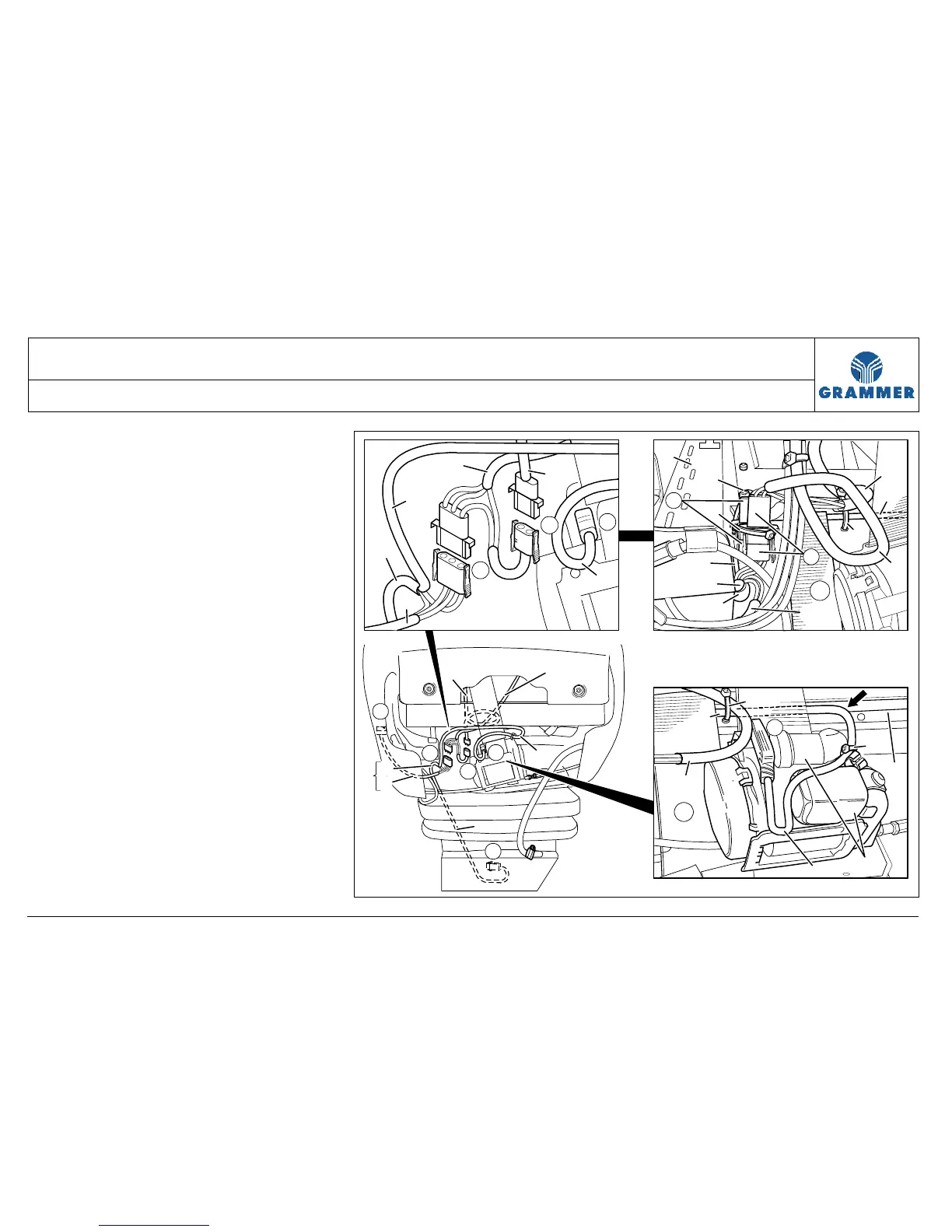

REMOVAL / INSTALLATION TABLE OF CONTENTS
Electrical plug and socket
connections:
(A) Electrical connection between the
vehicle and the cable for vehicle
connection (4)
(B) Electrical connection between the
heater switch and the cable for
heater switch (3)
(C) Electrical connection (3-pin)
between the heater cable (6) and
the cable for seat cushion heater (2)
(D) Electrical connection (2-pin)
between the cable for seat cushion
heater (2) and the cable for
backrest heater (1)
(E) Electrical connection between the
belt tensioner cable (5) and the belt
tensioner (7)
2
5
4
6
1
C
B
D
A
4
3
E
13
12
9
10
2
5
1
5
4
14
9
7
5
C
D
E
E
D
C
2
4
5
1
5
3
3
11
10
8
5
2
11
