Grammer MSG 90.6PG - Page 195

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.20 Heater cable and belt tensioner cable (delivery option) –
removal and installation
Page 4 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS

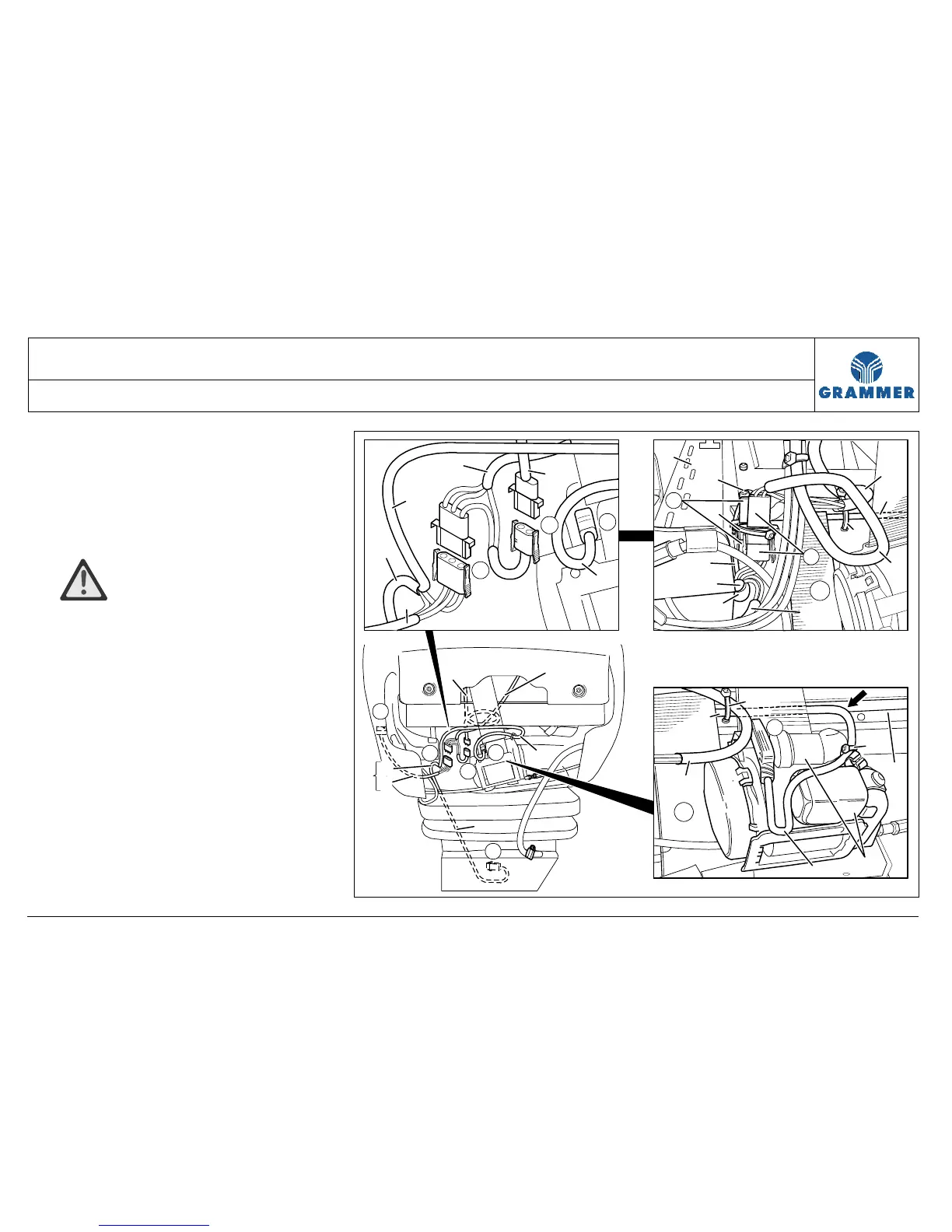

6 Seat with belt tensioner (7):
6.1 Mark the point where the belt
tensioner cable (5) is fastened to the
belt roller support (7) by means of
cable tie (8) and remove the cable
tie (8).
6.2 ATTENTION Damage!
When removing or installing the belt
tensioner cable (5), do not expose it
to impacts.
Disconnect the electrical
connection (E).
