Grammer MSG 90.6PG - Page 196

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.20 Heater cable and belt tensioner cable (delivery option) –
removal and installation
Page 5 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS

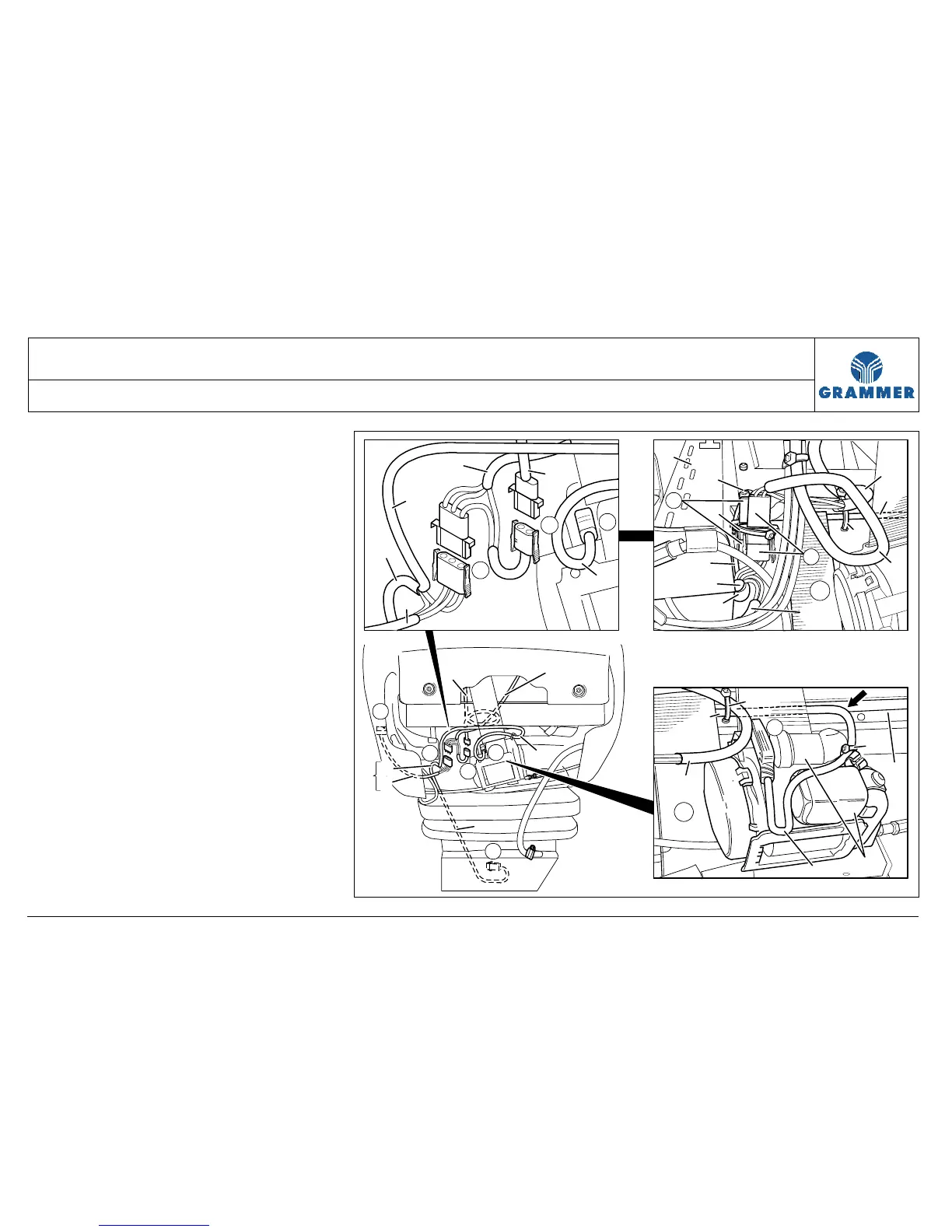

7 Mark the point where the cable of the
seat cushion heater (2) and the belt
tensioner cable (5) are fastened by
means of cable ties (10) and remove
the cable ties (10).
Note:
The belt tensioner cable (5) is only
fitted for seats with belt tensioner (7).
8 Mark the points where the two
electrical connections (C, D) are
bundled by means of cable ties (13)
and remove the cable ties (13).
Installation note:
The cable tie (13) must be guided
through the cable tie (12) fastened to
the seat frame (9) in order to fasten
the electrical connections (C, D) to the
seat frame (9) at the same time.
