Grammer MSG 90.6PG - Page 197

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.20 Heater cable and belt tensioner cable (delivery option) –
removal and installation
Page 6 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS

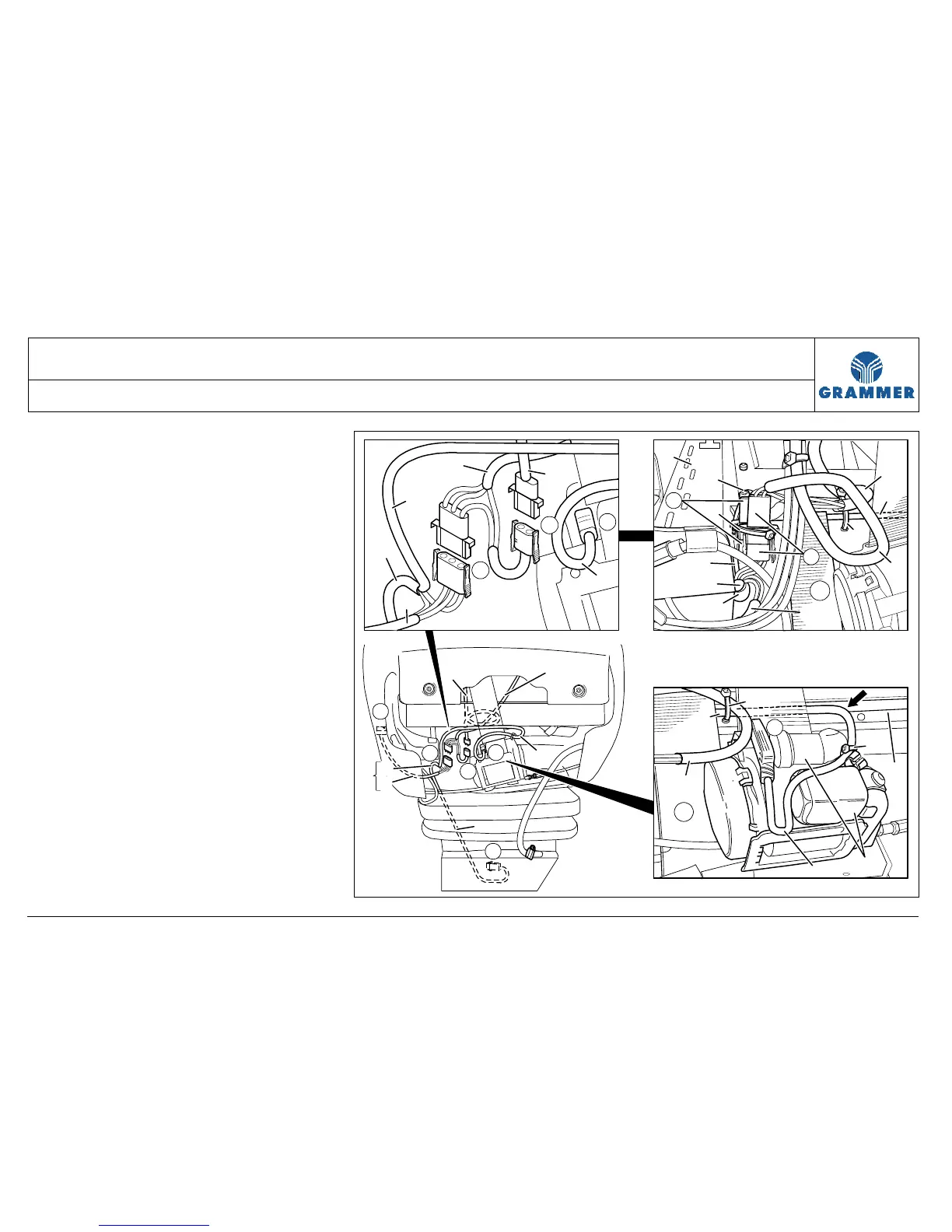

9 Disconnect the electrical connections
(C, D).
10 Seat with belt tensioner (7):
Pull out the belt tensioner cable (5)
to the left at the secondary belt (11)
and put it aside.
Installation note:
The belt tensioner cable (5) has to
be laid in the top seam (arrow) of the
cross member of the seat frame (9).
11 Disconnect the electrical
connection (B).
12 Pull out the clip (14) at the seat
frame (9) and detach the cable for
vehicle connection (4) and the belt
tensioner cable (5) at the clip (14).
Note:
The belt tensioner cable (5) is only
fitted for seats with belt tensioner
(7).
