Grammer MSG 90.6PG - Page 206

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

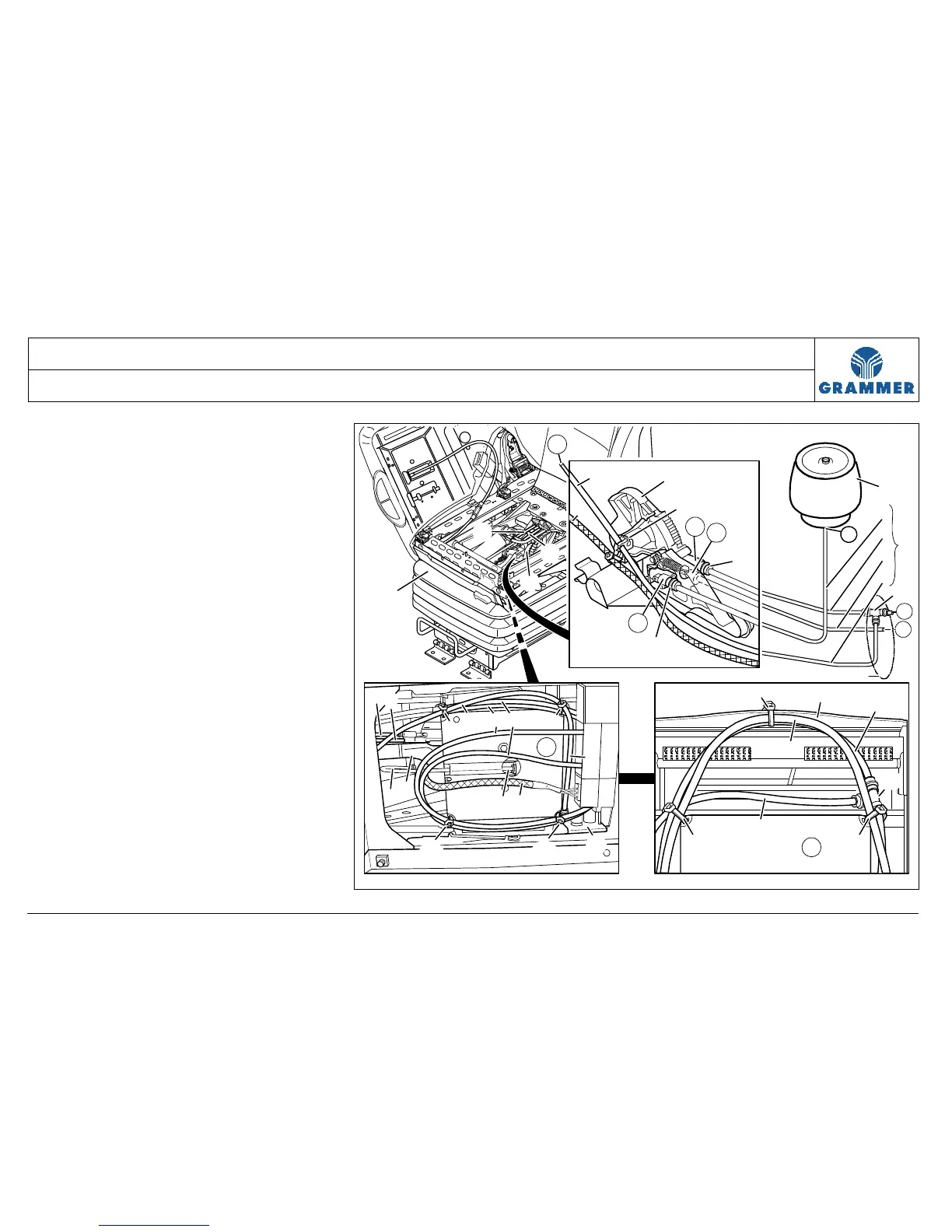

3.22 Air hose set – removal and installation
Page 1 of 15
REMOVAL / INSTALLATION TABLE OF CONTENTS
(1) Air hose (blue) for air spring (Z)
(2) Air hose (black) for air intake (P)
(3) Air hose (gray) for air exhaust (R)
(4) Air hose (black) for lumbar support
and lateral support adjustment (A)
(5) Entire air hose set
= (1) + (2) + (3) + (4)
Note:
The adhesive tapes are intended to
bundle the air hose set (5) and to
mark where the cable ties (11, 13)
have to be fastened.
(6) Air spring
(7) Air hose set for vehicle connection
(8) Level control
(9) Hose nozzle
(10) Retainer (level control)
(11) Cable tie
R
7
6
1
3
2
5
14
4
Z
8
4
P
R
10
12
12
19
4
8
9
P
9
1
8
3
2
13
4
3 2
13
4
4
3
15
2
15
16
16
1
12
13
13
11
13
14
13
A
Z
