Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.22 Air hose set – removal and installation
Page 3 of 15
REMOVAL / INSTALLATION TABLE OF CONTENTS

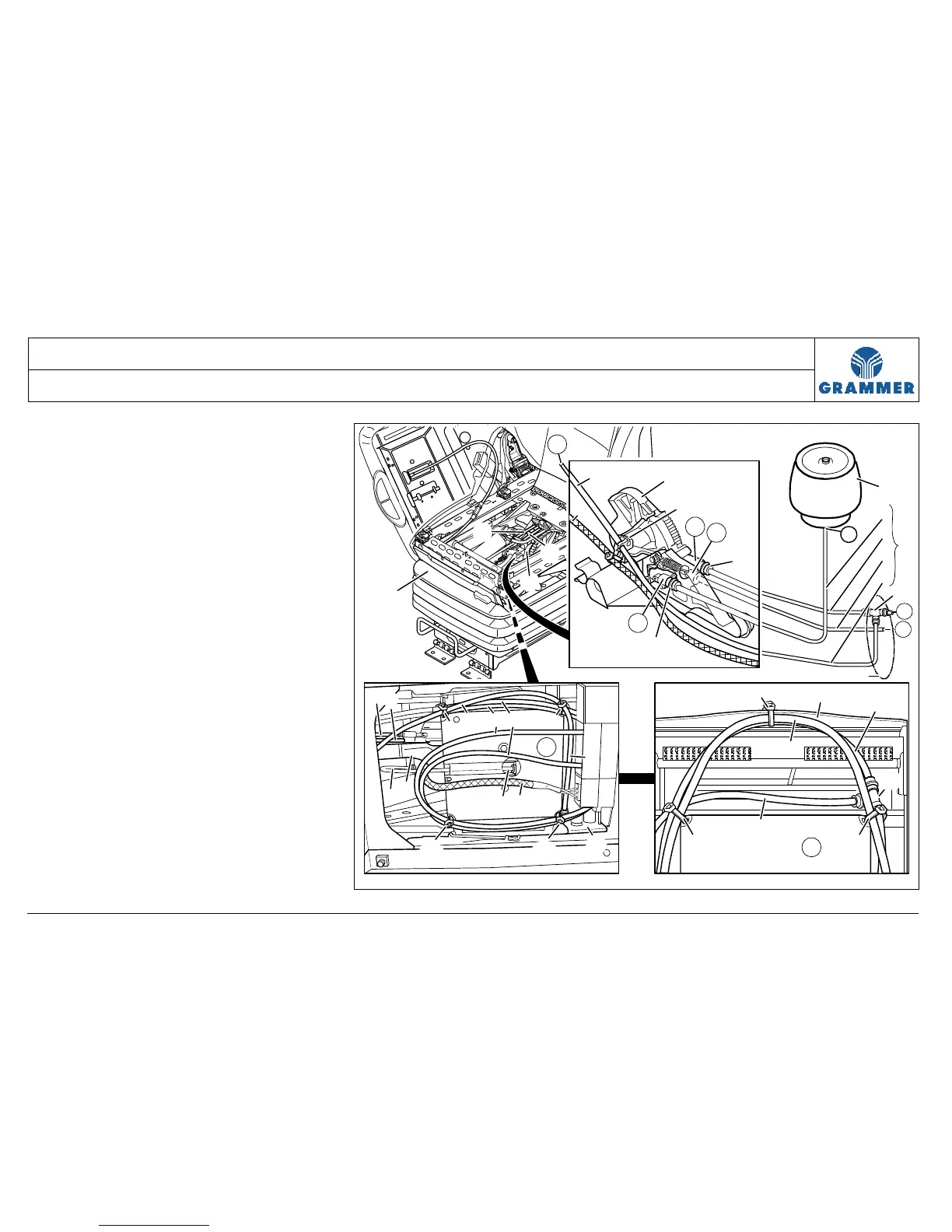

General instructions for air hose
(2, 3, 4) installation in bus seats:
• Make sure that sufficient length of the
air hoses (2, 3, 4) is provided.
Move the seats to the maximum forward
and backward stop of the seat fore/aft
adjustment. The air hoses (2, 3, 4) must
not be squeezed!
• Fasten the cable ties so as to ensure
sufficient movement space for the air
hoses (2, 3, 4) when the seat is moved
(sufficient hose length should be
provided).
R
7
6
1
3
2
5
14
4
Z
8
4
P
R
10
12
12
19
4
8
9
P
9
1
8
3
2
13
4
3 2
13
4
4
3
15
2
15
16
16
1
12
13
13
11
13
14
13
A
Z
