Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.22 Air hose set – removal and installation
Page 4 of 15
ATTENTION Malfunction!
• It is not allowed to replace individual
air hoses (2, 3, 4) due to risk of crushing
(when improperly installed).
If an individual air hose (2, 3, 4) is
defective, the air hose set for vehicle
connection (7) of the seat has to be
removed and replaced.
Note:
The air hose (1) to the air spring (6)
must only be replaced, if the air hose (1)
is defective.
• The air hoses (1, 2, 3, 4) differ in
length and colour.

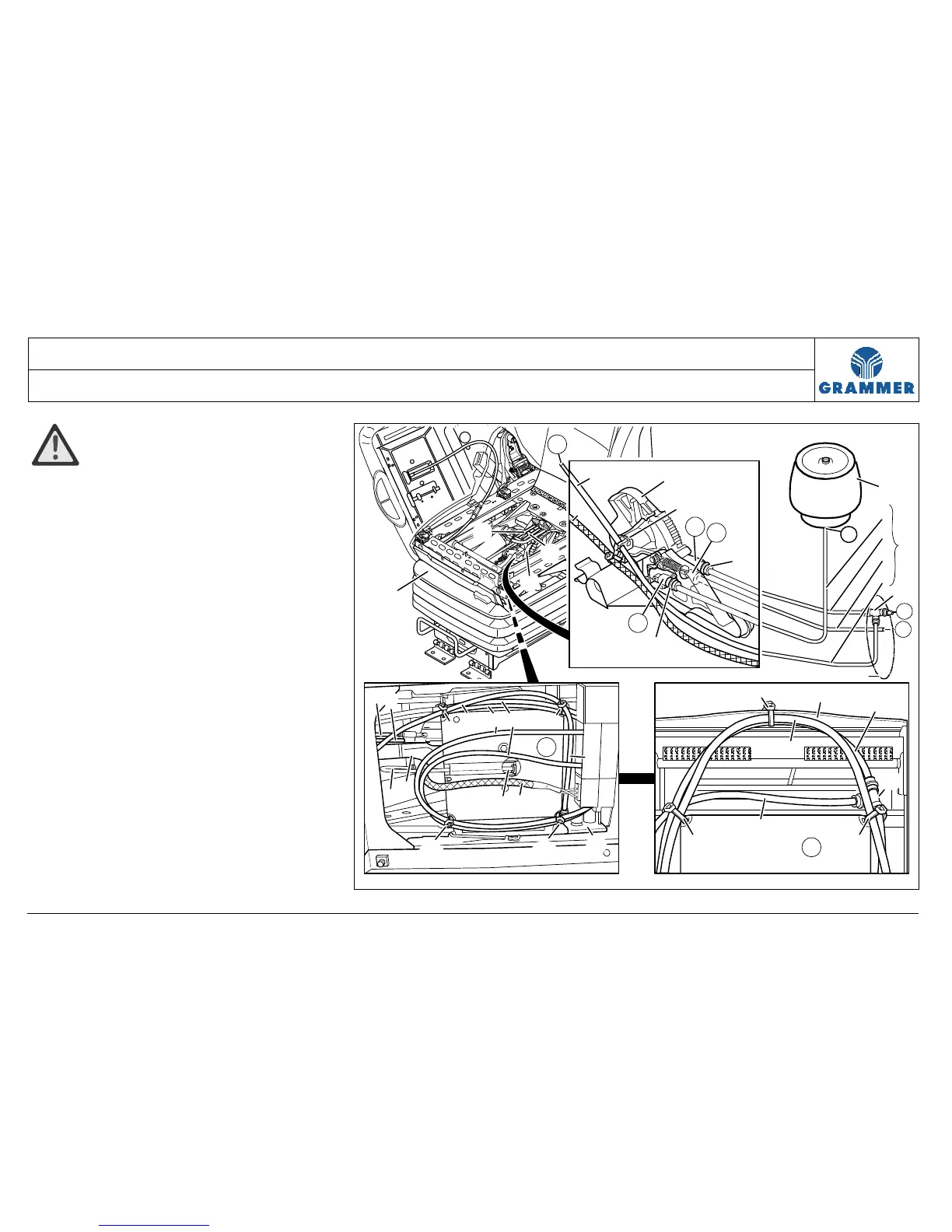

• The provided illustrations show how to
run the hoses in an assembled seat. The
instructions on how to run hoses to
individual assemblies and the respective
attachment points of the cable ties for
the air hose set (7) are to be observed!
R
7
6
1
3
2
5
14
4
Z
8
4
P
R
10
12
12
19
4
8
9
P
9
1
8
3
2
13
4
3 2
13
4
4
3
15
2
15
16
16
1
12
13
13
11
13
14
13
A
Z
2213
