Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.22 Air hose set – removal and installation
Page 10 of 15
REMOVAL / INSTALLATION TABLE OF CONTENTS

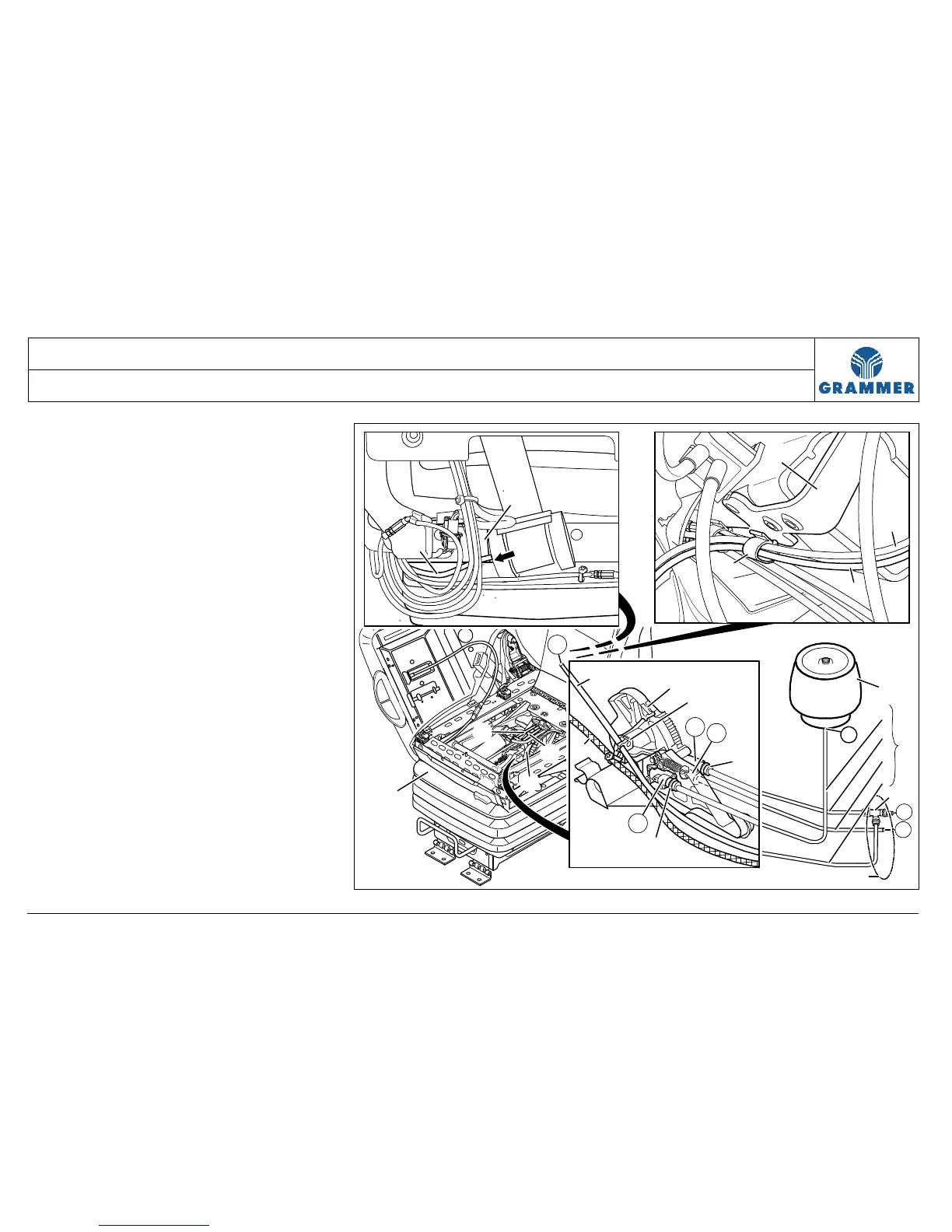

10 Pull out the clip (18) at the Z-section
(17) and detach the air hose (4) at
the clip (18).
11 Mark the installation position of the
air hose (4) and guide the air hose
(4) inwards at the cut-out (arrow) in
the bellows (19).
Installation note:
Lay the air hose (4) according to the
marking.
12 Detach the air hose (4) at the
retainer (10) of the level control (8).
13 Pull off the hose nozzle (9) and push
it backwards at the air hose (2).
R
7
6
1
3
2
5
14
4
Z
P
8
4
P
R
10
12
12
19
4
8
9
4
9
A
Z
19
2216
18
4
12
17
