Grammer MSG 90.6PG - Page 216

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

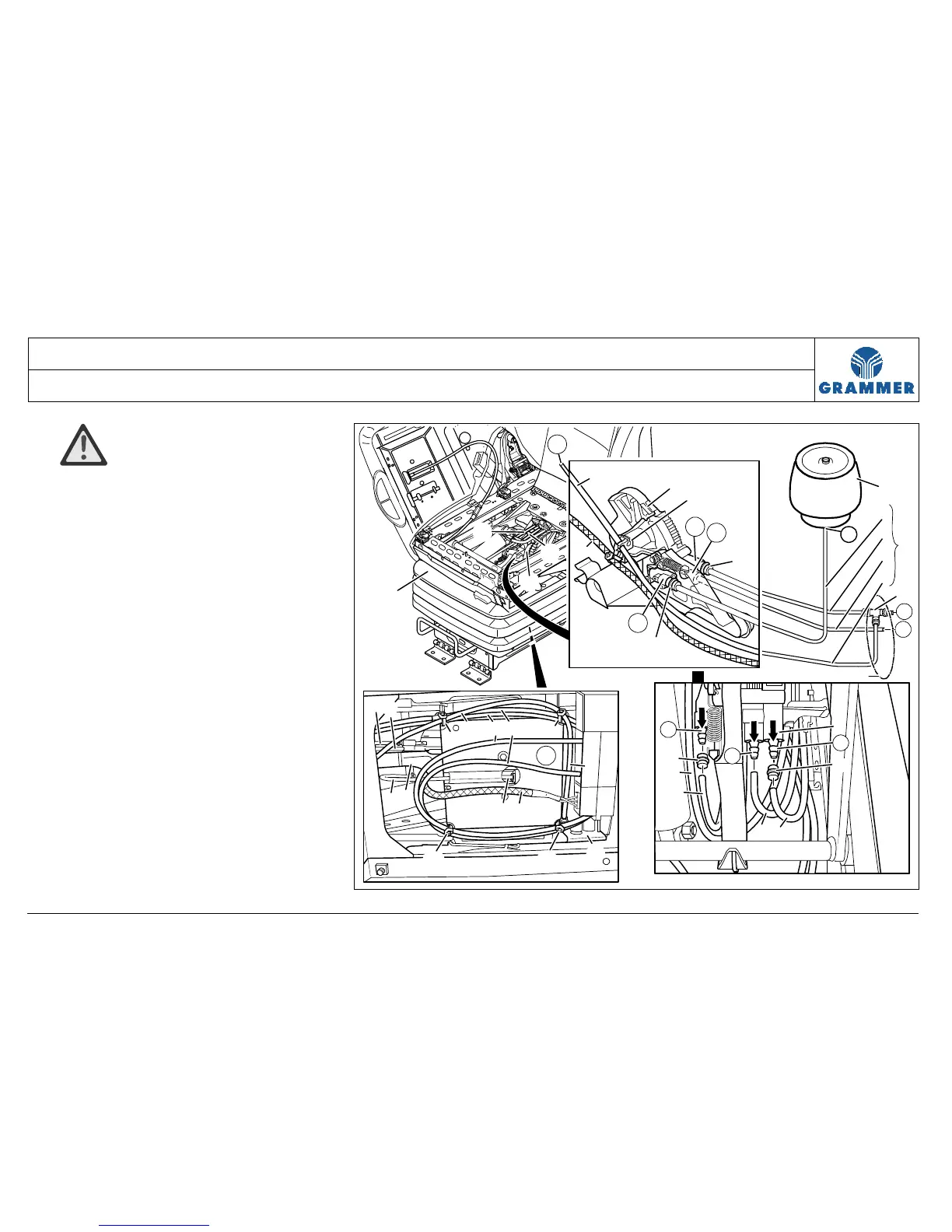

3.22 Air hose set – removal and installation
Page 11 of 15
REMOVAL / INSTALLATION TABLE OF CONTENTS
14 ATTENTION Damage!
Take care not to damage the
connections (mandrel profiles) of the
level control (8).
Pull off the air hoses (2, 3) at the
connections (arrows) of the level
control (8).
Notes:
•
For easier removal, carefully slit the
air hoses (2, 3) with a sharp knife.
• Do not use a screwdriver or similar
tools to lift off the air hoses (2, 3) at
the connections (arrows) of the level
control (8).
Installation notes:
• Push the air hoses (2, 3)
completely onto the connections
(arrows) of the level control (8) by
exerting pressure.
• The air hose (3) has to be installed
at the level control (8) without hose
nozzle (9).
R
7
6
1
3
2
5
14
4
Z
P
8
4
P
R
10
12
12
19
4
8
9
1
8
3
2
13
4
3 2
13
4
15
16
1
12
13
13
9
A
Z
2215
P
R
Z
9
4
1
3
2
9
8
