Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.22 Air hose set – removal and installation
Page 12 of 15
REMOVAL / INSTALLATION TABLE OF CONTENTS

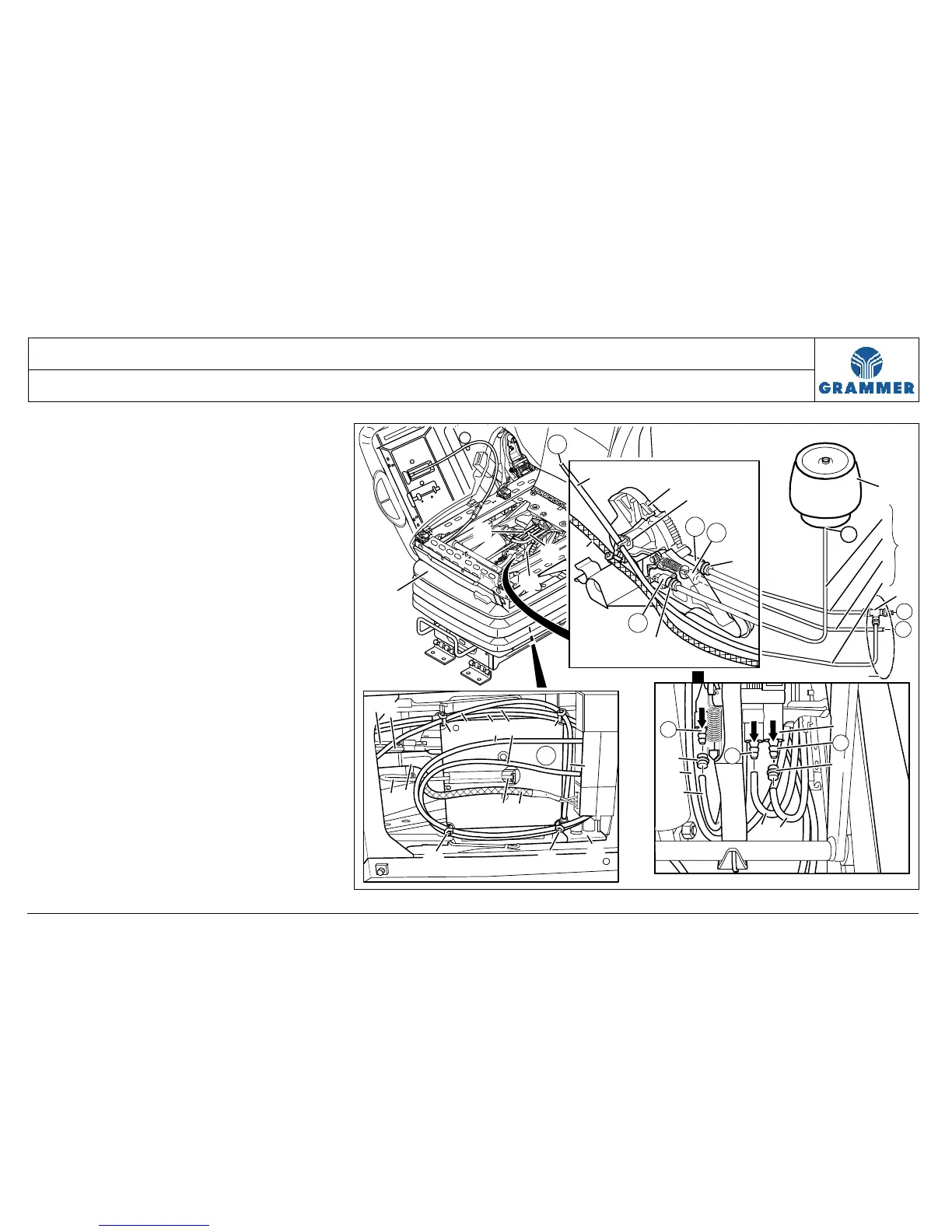

15 Pull off the hose nozzle (9) at the air
hose (2).
16 Lay the seat on the side to allow
access to the bottom side.
17 Mark the installation position of the
air hose set for vehicle connection
(2, 3, 4) prior to removal.
• For seat model Actros: The air
hoses (2, 3) are placed in a loop of
180° to the connection at the pin
contact strip.
• For seat models Atego/Axor:
The air hoses (2, 3) are placed in a
loop of 360° to the connection at the
pin contact strip.
R
7
6
1
3
2
5
14
4
Z
P
8
4
P
R
10
12
12
19
4
8
9
1
8
3
2
13
4
3 2
13
4
15
16
1
12
13
13
9
A
Z
2215
P
R
Z
9
4
1
3
2
9
8
