Grammer MSG 90.6PG - Page 219

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.22 Air hose set – removal and installation
Page 14 of 15
REMOVAL / INSTALLATION TABLE OF CONTENTS

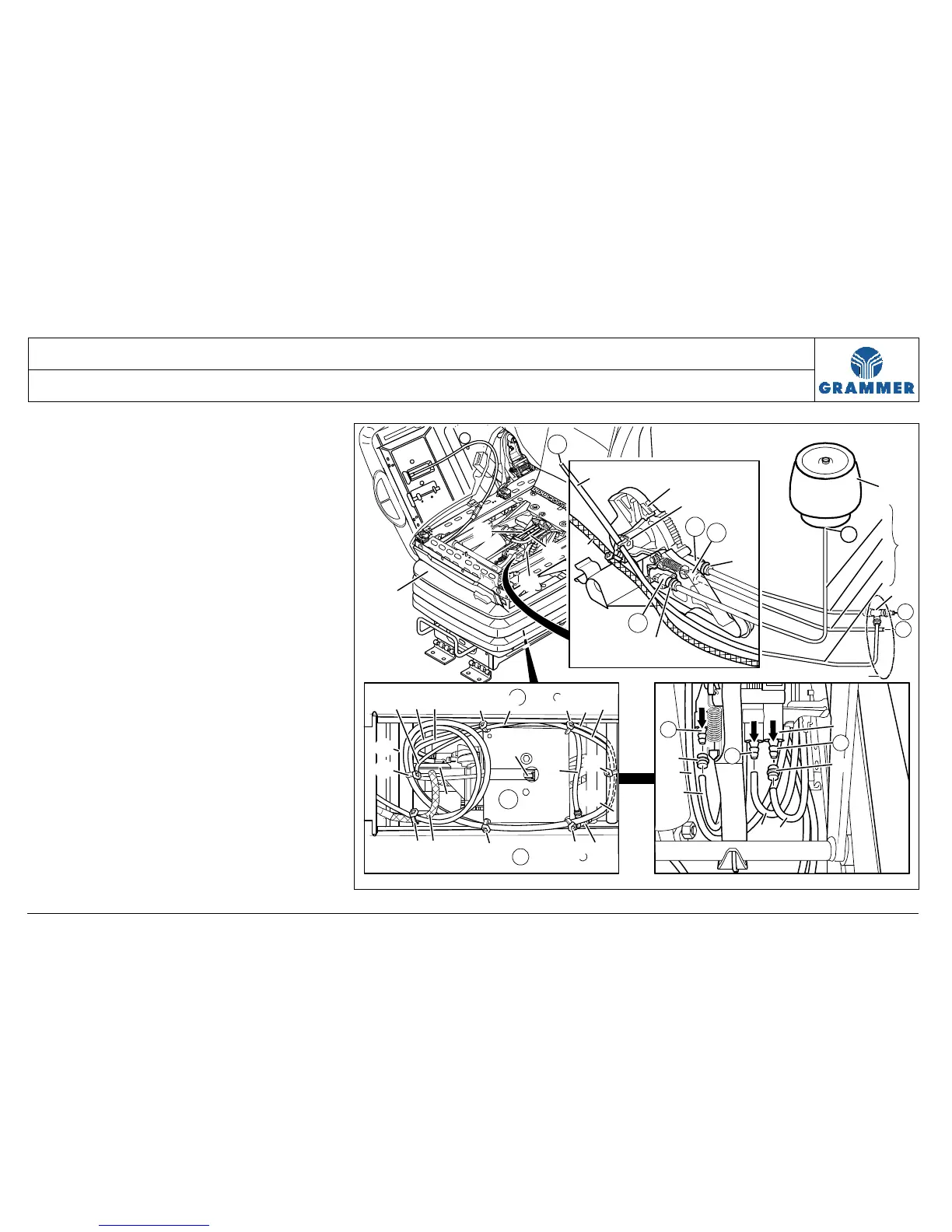

19 For seat models Atego/Axor:
19.1 Remove the air hoses at the pin
contact strip (see Chapter 3.40).
19.2 Mark the points where the air
hoses (2, 3, 4) are fastened to the
air spring support (16) by means of
four cable ties (20) and remove the
cable ties (20).
19.3 Mark the points where the air
hoses (2, 3) are fastened to the
lower suspension part (15) and to
the supporting structure (23) by
means of cable ties (21) and
remove the cable ties (21).
P
R
7
6
1
3
2
5
14
4
Z
P
8
4
P
R
10
12
12
19
4
8
9
9
A
Z
8
3
20
2
4
3
20
2
4
1
1
4
16
21
21
15
20
20 14
23
22 12
2217
P
R
Z
9
4
1
3
2
9
8
