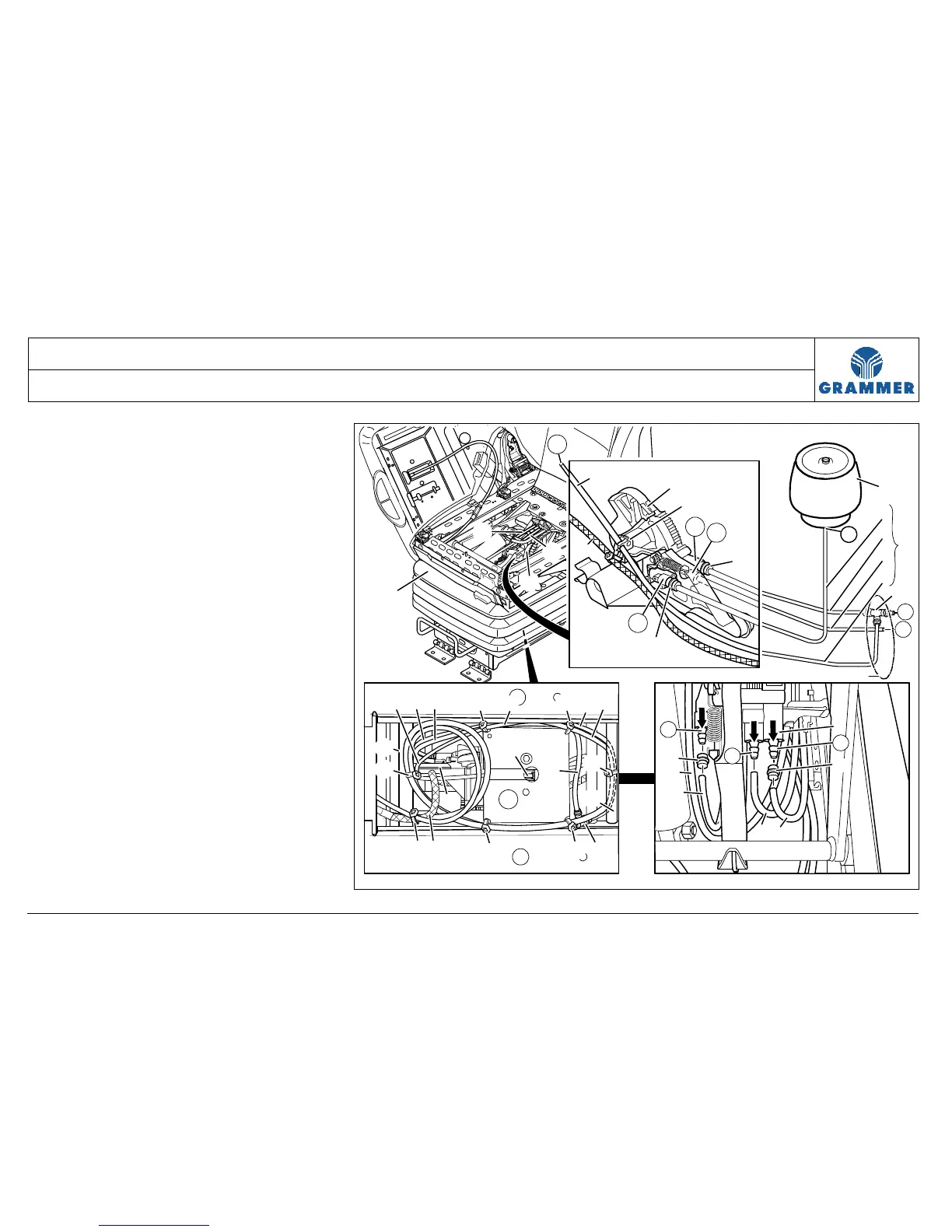

3.22 Air hose set – removal and installation
Page 15 of 15
REMOVAL / INSTALLATION TABLE OF CONTENTS
19.4 Mark the point where the air hoses
(2, 3) and the cable for vehicle
connection (12) are bundled by
means of cable ties (22) and
remove the cable ties (22).
Note:
If an EPS cable is fitted, take into
consideration the fastening of the
EPS cable at the air hoses (2, 3)
by means of the cable ties (21, 22)
and additional cable ties (see
Chapter 3.21).
20 Pull the air hose set for vehicle
connection (7) out of the seat in
downward direction and remove it.
Installation note:
Lay the air hose set for vehicle
connection (7) according to the
marked installation position.
21 Re-install the components in the
reverse order of their removal.
