Grammer MSG 90.6PG - Page 225

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.24 Armrests – removal and installation (delivery option)
Page 1 of 2

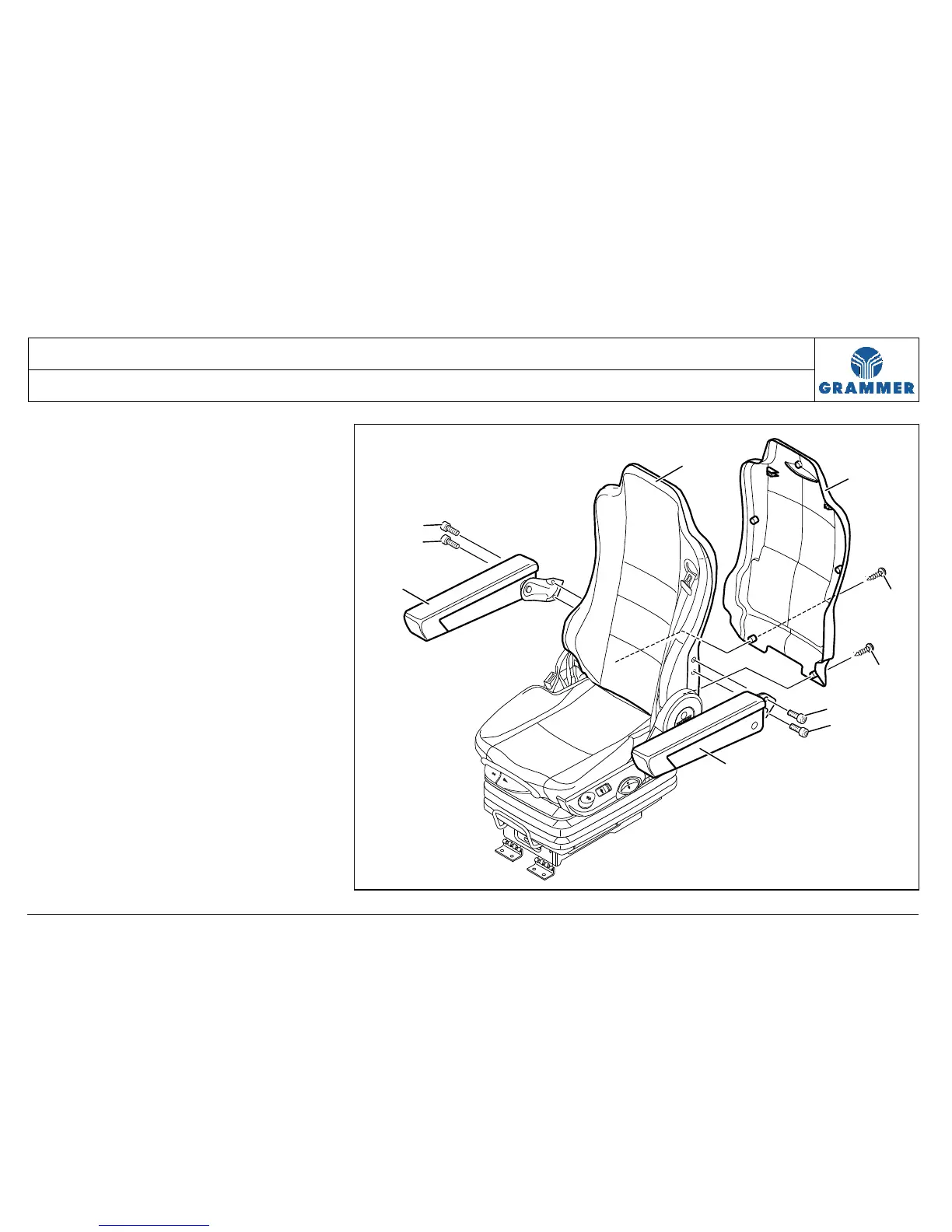

REMOVAL / INSTALLATION TABLE OF CONTENTS
(1) Backrest
(2) Backrest cover
(3) Rounded head screw
(inner race) ............................ 4 Nm
(4) Armrest on the left
(5) Micro-encapsulated cap
screw ..................
to replace, 25 Nm
(6) Armrest on the right
(7) Micro-encapsulated cap
screw ..................
to replace, 25 Nm
6
7
7
4
5
5
2221
3
3
