Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

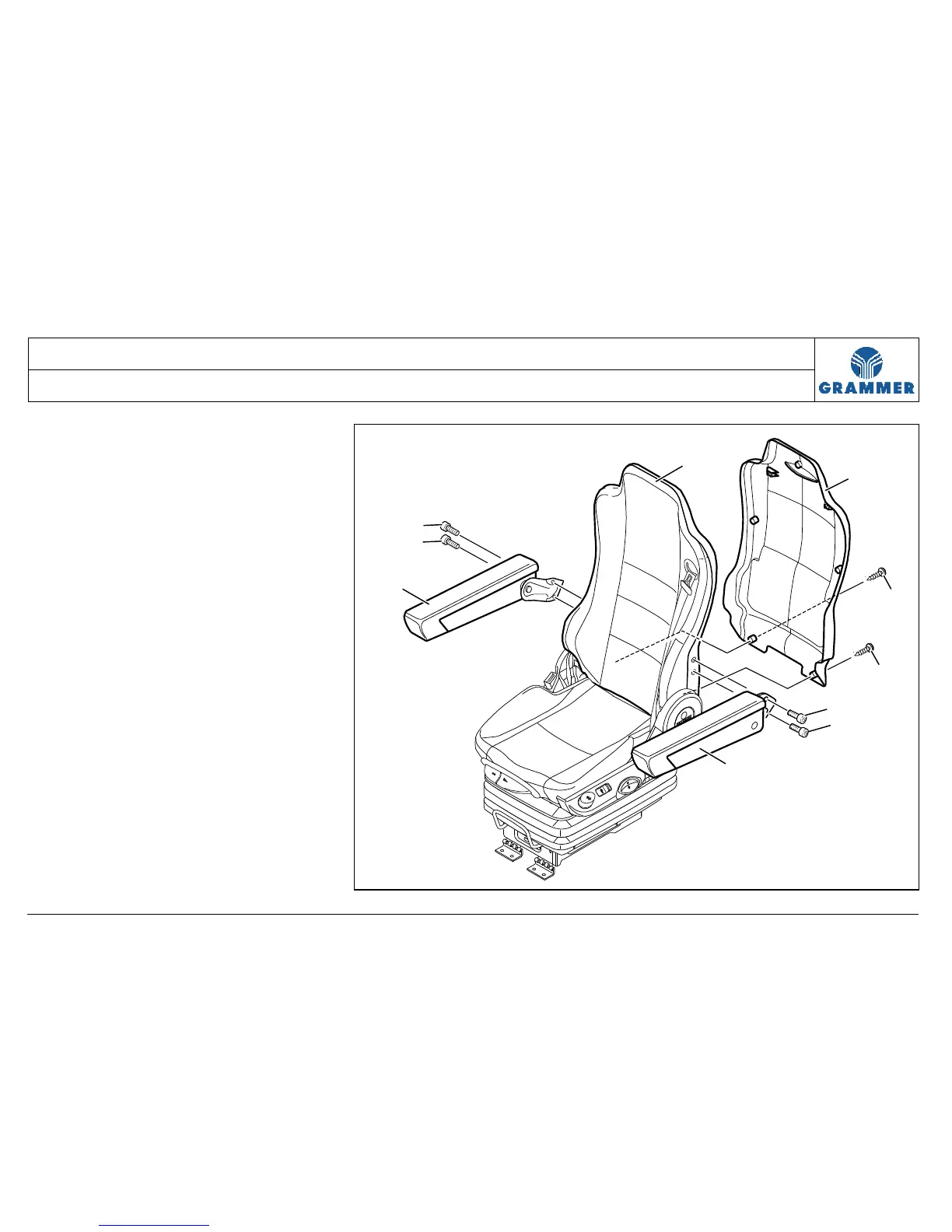

3.24 Armrests – removal and installation (delivery option)
Page 2 of 2
REMOVAL / INSTALLATION TABLE OF CONTENTS
Removal and installation
1 Unscrew two rounded head
screws (3).
Installation note:
Rounded head screw (3), 4 Nm.
2 Unscrew two micro-encapsulated cap
screws on the left (5) or right (7) and
remove the left armrest (4) or right
armrest (6) from the backrest (1).
Note:
Slightly lift the backrest cover (2) so
that the micro-encapsulated cap
screws (5) or (7) are accessible.
Installation note:
Replace the micro-encapsulated cap
screw (5) or (7), 25 Nm.
3 Re-install the components in the
reverse order of their removal.
6
7
7
4
5
5
2221
3
3
