Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

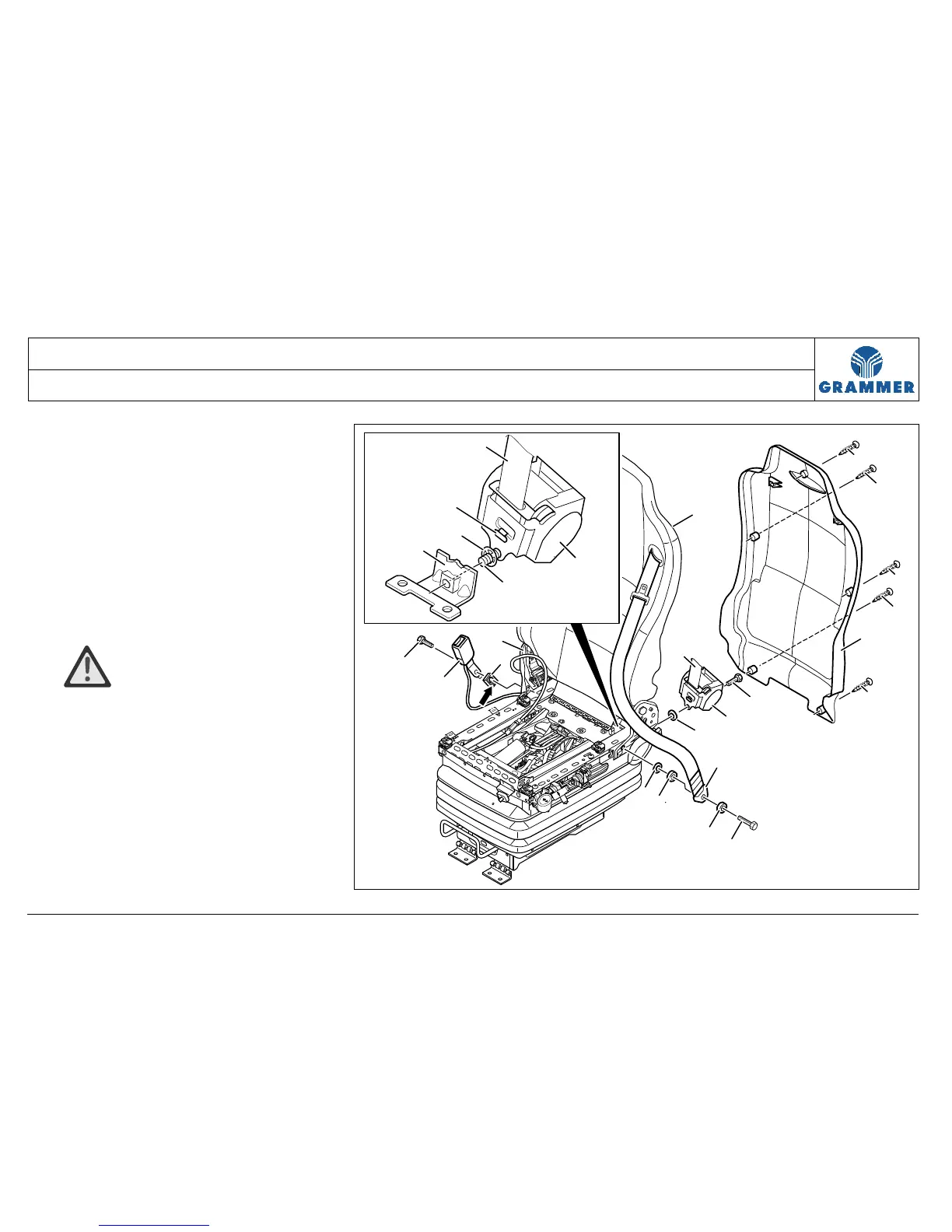

3.26 Backrest cover and seat belt – removal and installation
Page 1 of 9
REMOVAL / INSTALLATION TABLE OF CONTENTS
(1) Hexagon bolt ........................ 45 Nm
(2) Belt buckle
(3) Spacer
(4) Spring washer
(5) Adjustment washer (plastic)
(6) Safety belt
(7) Hexagon bolt ........................ 45 Nm
(8) Spring washer
(9) Belt roller
CAUTION Pay attention to
the safety notes in Chapter 1.1 on
belt rollers with belt tensioners!
(10) Hexagon bolt ........................ 45 Nm
(11) Rounded head screw
(inner race) ............................. 4 Nm
(12) Backrest cover
(13) Support
(14) Lock
9
14
13
8
6
10
7
6
8
9
11
11
11
11
12
23
11
10
6
5
5
3
2
24
1
4
