Grammer MSG 90.6PG - Page 234

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

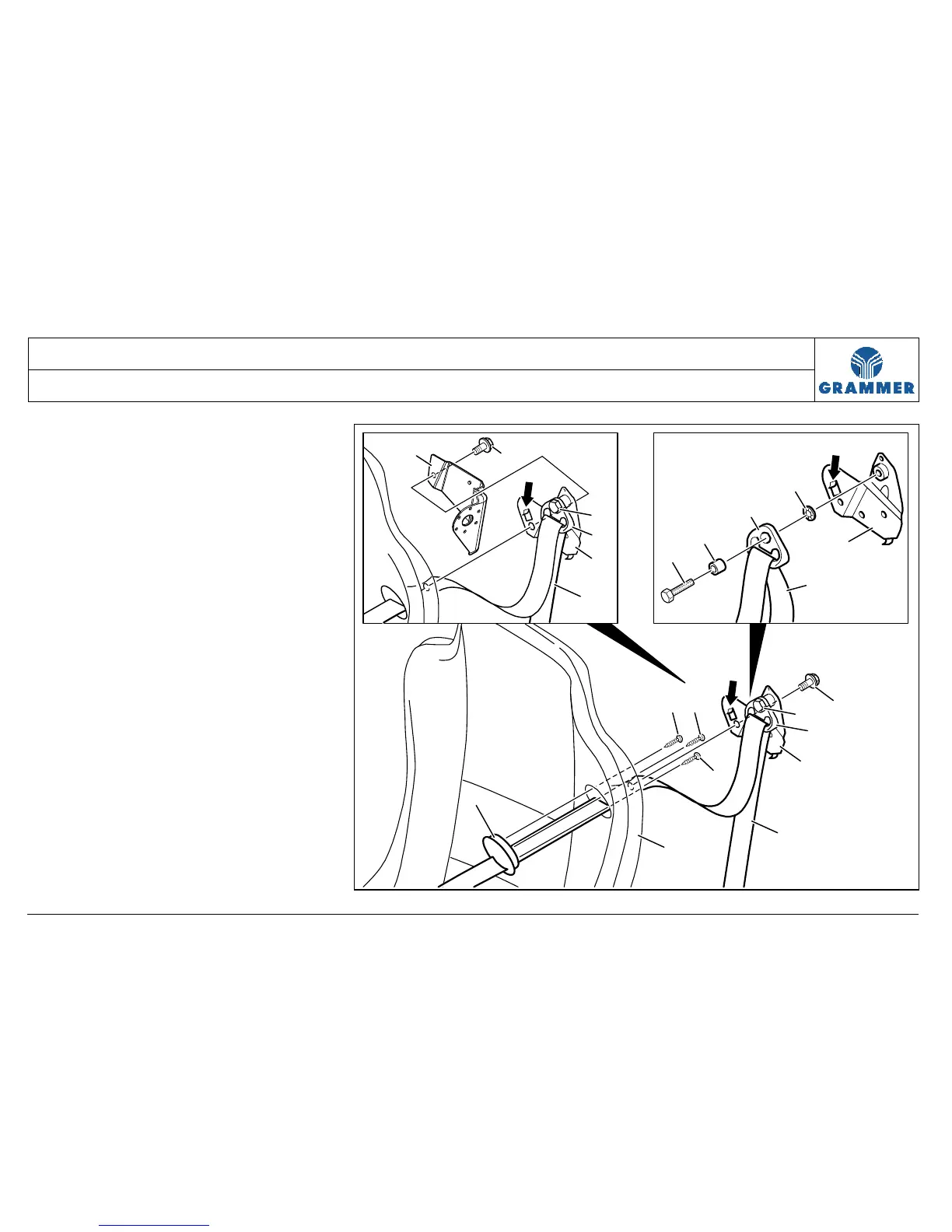

3.26 Backrest cover and seat belt – removal and installation
Page 3 of 9
REMOVAL / INSTALLATION TABLE OF CONTENTS
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
2 Seat with operator console and
armrest for electro-pneumatic
gearshift:
Remove the supporting structure for
electro-pneumatic gearshift (EPS)
(see Chapter 3.25).
3 Remove the left covering in position
for repair (Chapter 3.4).
4 Remove the covering completely
(Chapter 3.5).
Note:
For seat models with fore/aft isolator
remove only the left and right
covering. Do not remove the covering
at the front.
