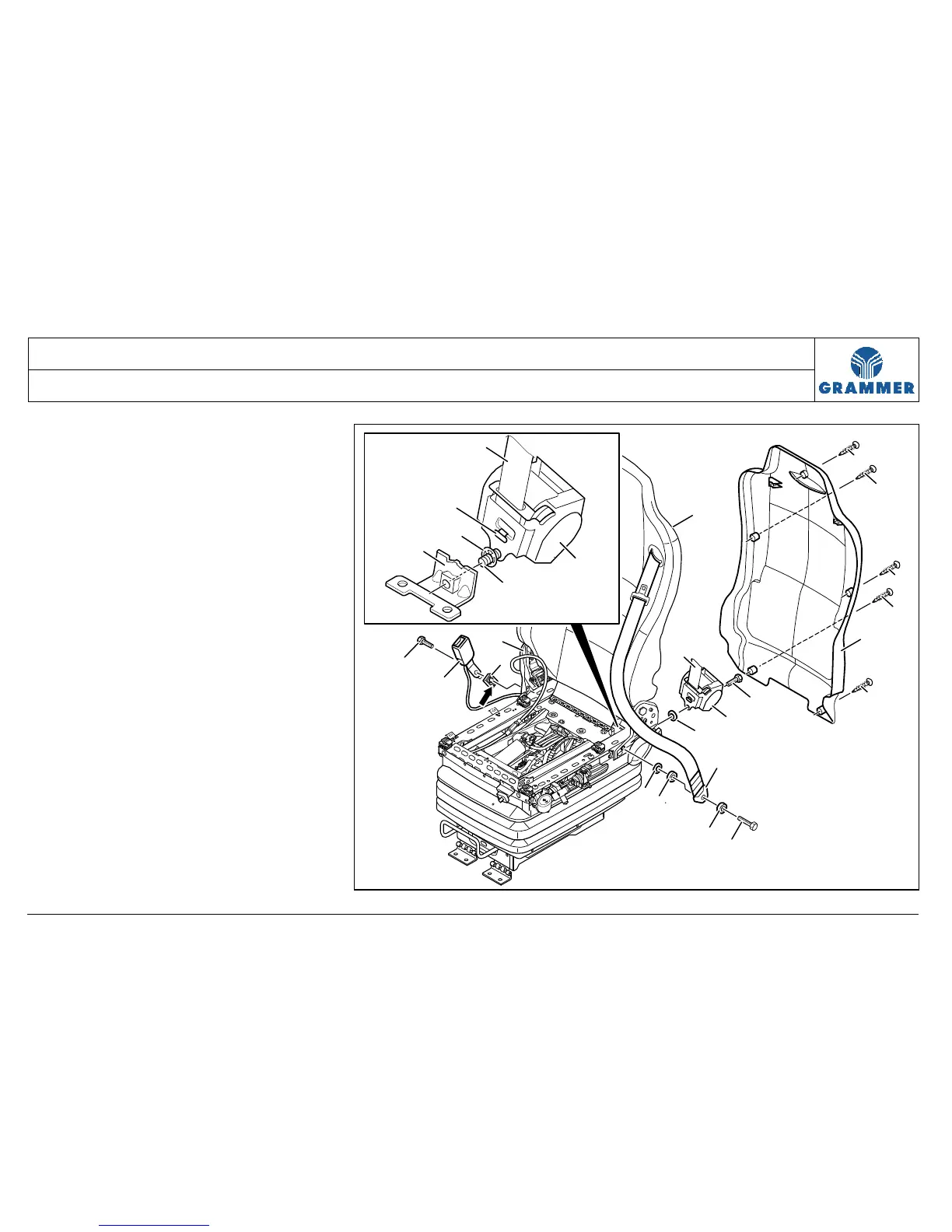

3.26 Backrest cover and seat belt – removal and installation
Page 4 of 9
Removal and installation
5 Unscrew the five rounded head
screws (11) and remove the backrest
cover (12).
Installation note:
Rounded head screw (11), 4 Nm.
6 Unscrew the hexagon bolt (7) and
remove the two adjustment washers
(5) and the spring washer (4).
Installation notes:
• For a new safety belt (6) the items
hexagon bolt (7), adjustment washer
(5) and spring washer (4) are
preassembled at the safety belt (6).
• Hexagon bolt (7), 45 Nm.
