Grammer MSG 90.6PG - Page 236

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.26 Backrest cover and seat belt – removal and installation
Page 5 of 9
REMOVAL / INSTALLATION TABLE OF CONTENTS

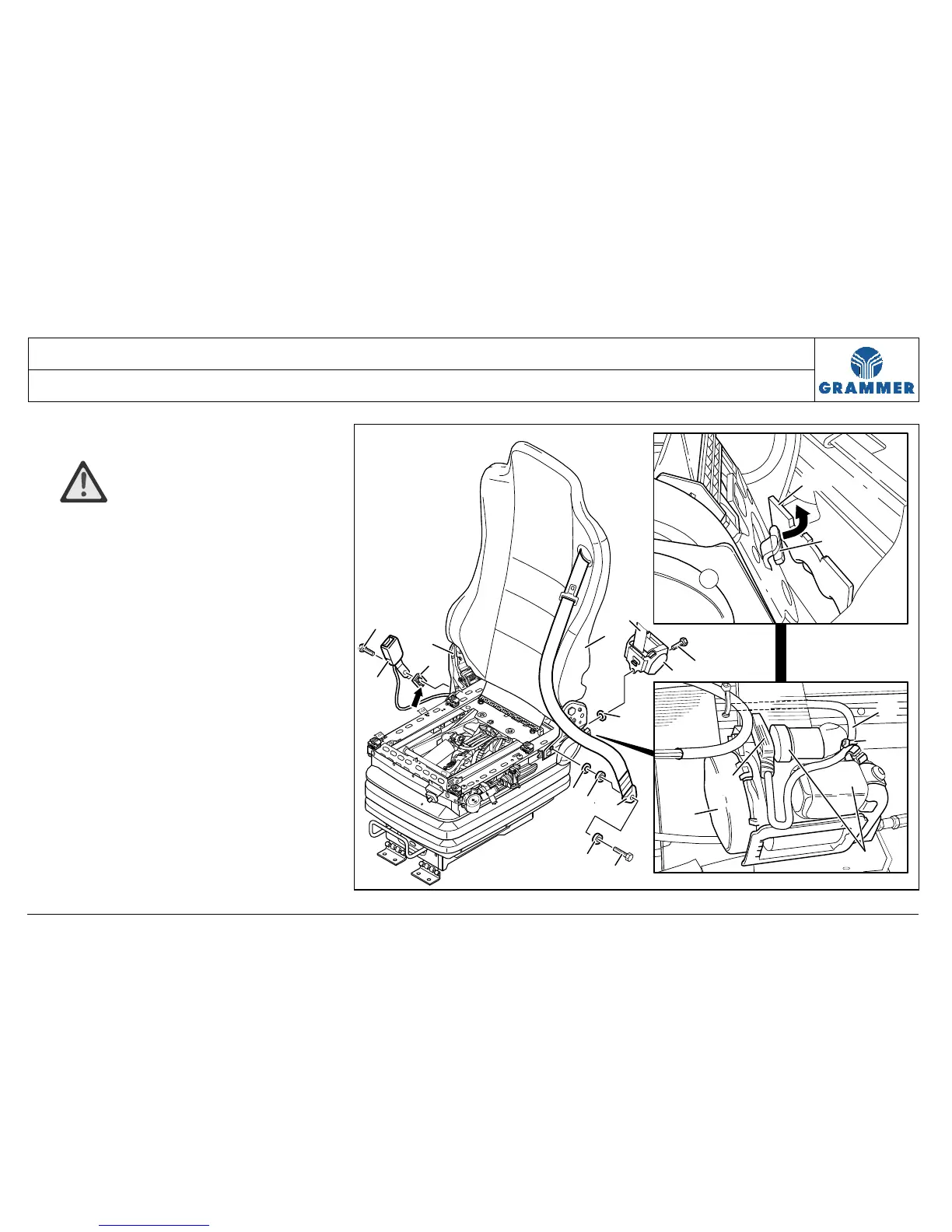

7 Belt roller (9) with belt tensioner
(25):
WARNING Risk of injury!
Pay attention to the safety notes in
Chapter 1.1 on belt roller (9) with
belt tensioners (25)!
7.1 Mark the point where the belt
tensioner cable (28) is fastened with
the cable tie (26) and remove the
cable tie (26).
7.2 Disconnect the electrical connection
between the plug (27) and the belt
tensioner (25).
