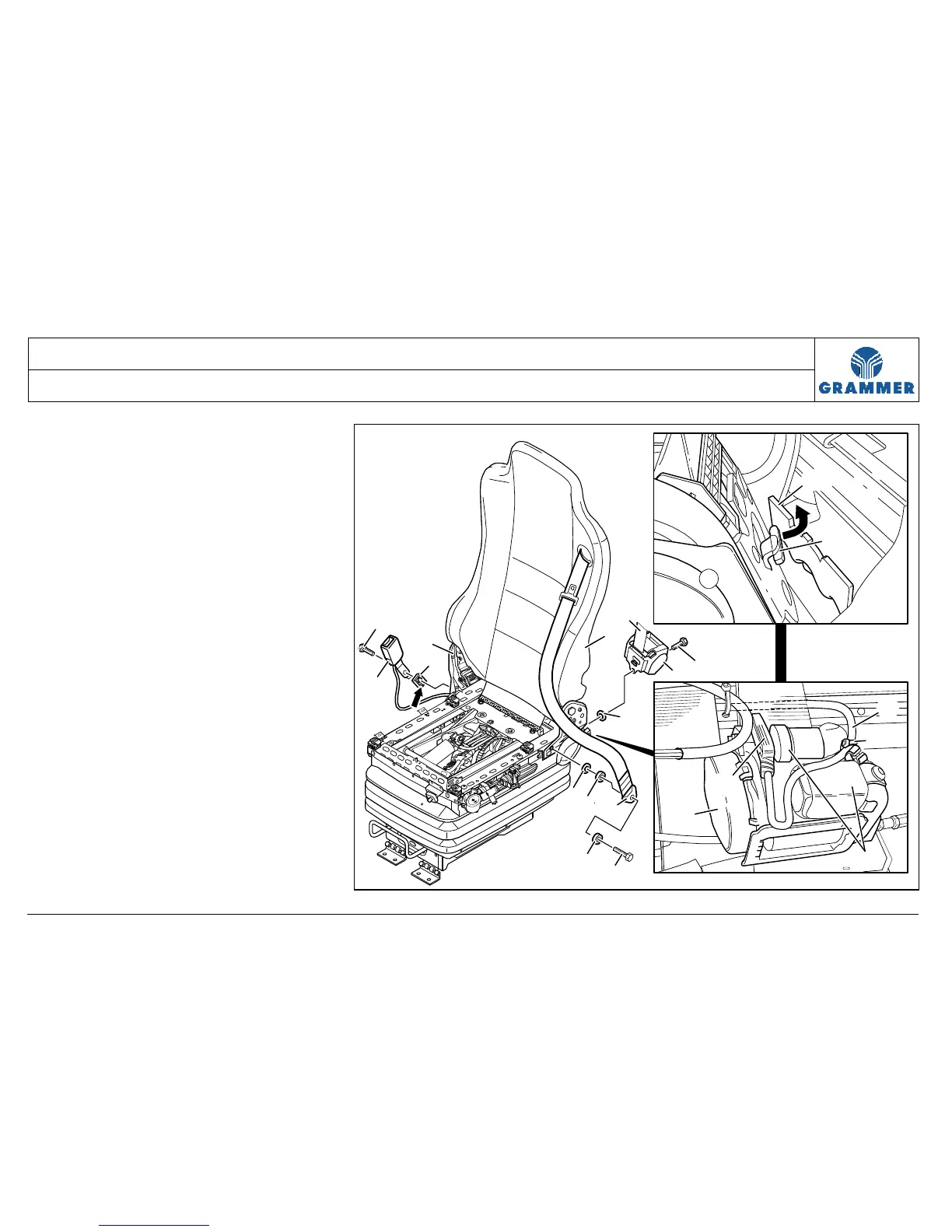

3.26 Backrest cover and seat belt – removal and installation
Page 6 of 9
REMOVAL / INSTALLATION TABLE OF CONTENTS
8 Unscrew the hexagon bolt (10) at the
support (13) and remove the spring
washer (8).
Installation notes:
• Hexagon bolt (10), 45 Nm.
• For a new safety belt (6), the items
hexagon bolt (10) and spring washer
(8) are preassembled on the belt
roller (9).
9 Carefully place the belt roller down (9).
Installation note:
Hang in the lock (14) at the belt roller
(9) behind the support (13) in the
installation position (arrow).
