3.26 Backrest cover and seat belt – removal and installation
Page 8 of 9
REMOVAL / INSTALLATION TABLE OF CONTENTS

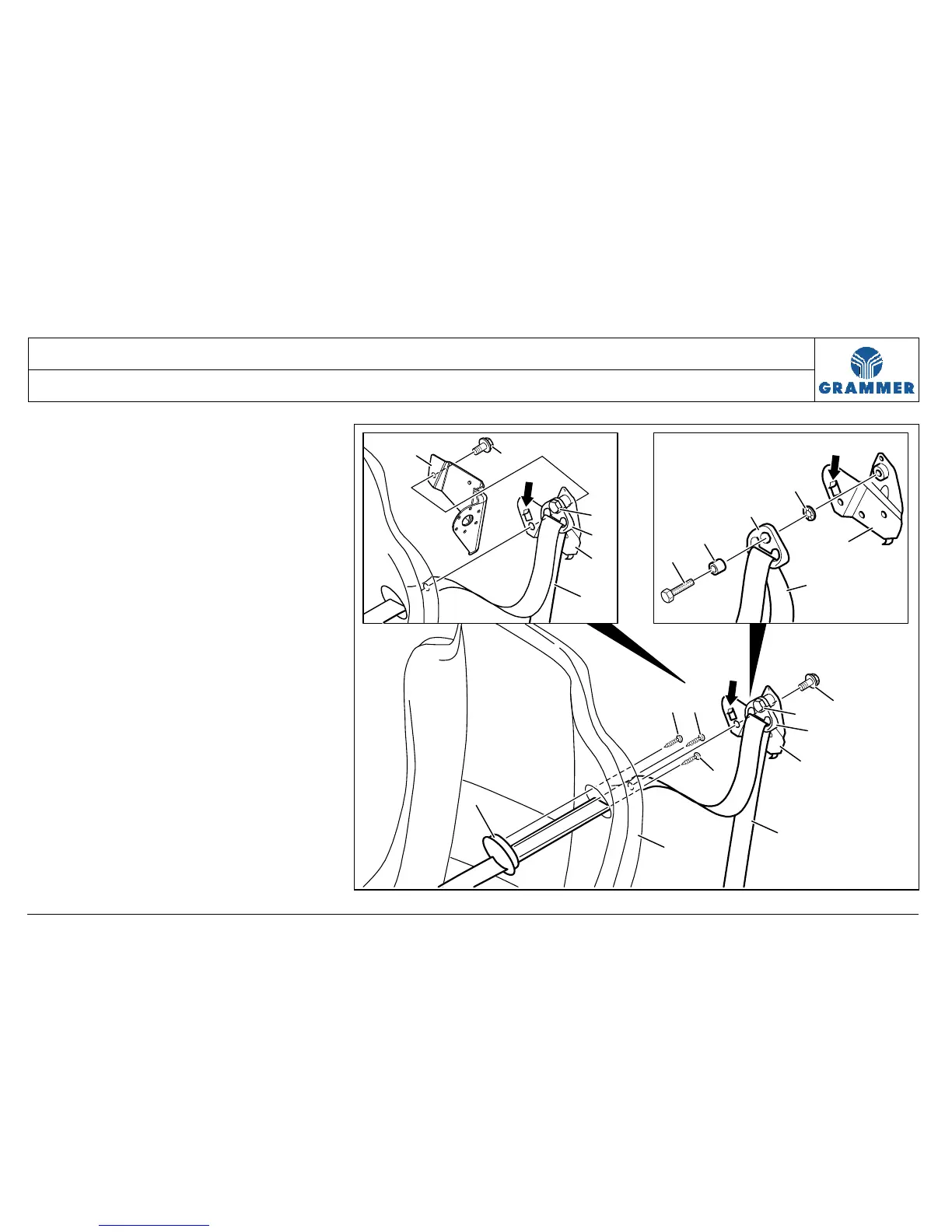

12 Pull out the belt guide (15) forwards
towards the backrest (23).
13 Hang out the safety belt (6) and the
belt guide (15) and guide it out of the
backrest (23) towards the back.
14 Unscrew the hexagon bolt (19) and
remove the belt guide (21) with
safety belt (6), spacer sleeve (20)
and spring washer (22) from the belt
bracket (17).
Installation notes:
• For a new safety belt (6) the items
hexagon bolt (19), spacer sleeve
(20) and spring washer (22) are
preassembled at the belt guide (21).
• Hexagon bolt (19), 45 Nm.
18
18
17
19
21
6
23
16
16 16
17
19
21
6
24
22
17
20
21
19
6
15
