3.26 Backrest cover and seat belt – removal and installation
Page 9 of 9
REMOVAL / INSTALLATION TABLE OF CONTENTS
15 Belt buckle with belt buckle cable:
Remove the belt buckle with belt
buckle cable (Chapter 3.28).
16 Belt buckle without belt buckle
cable:

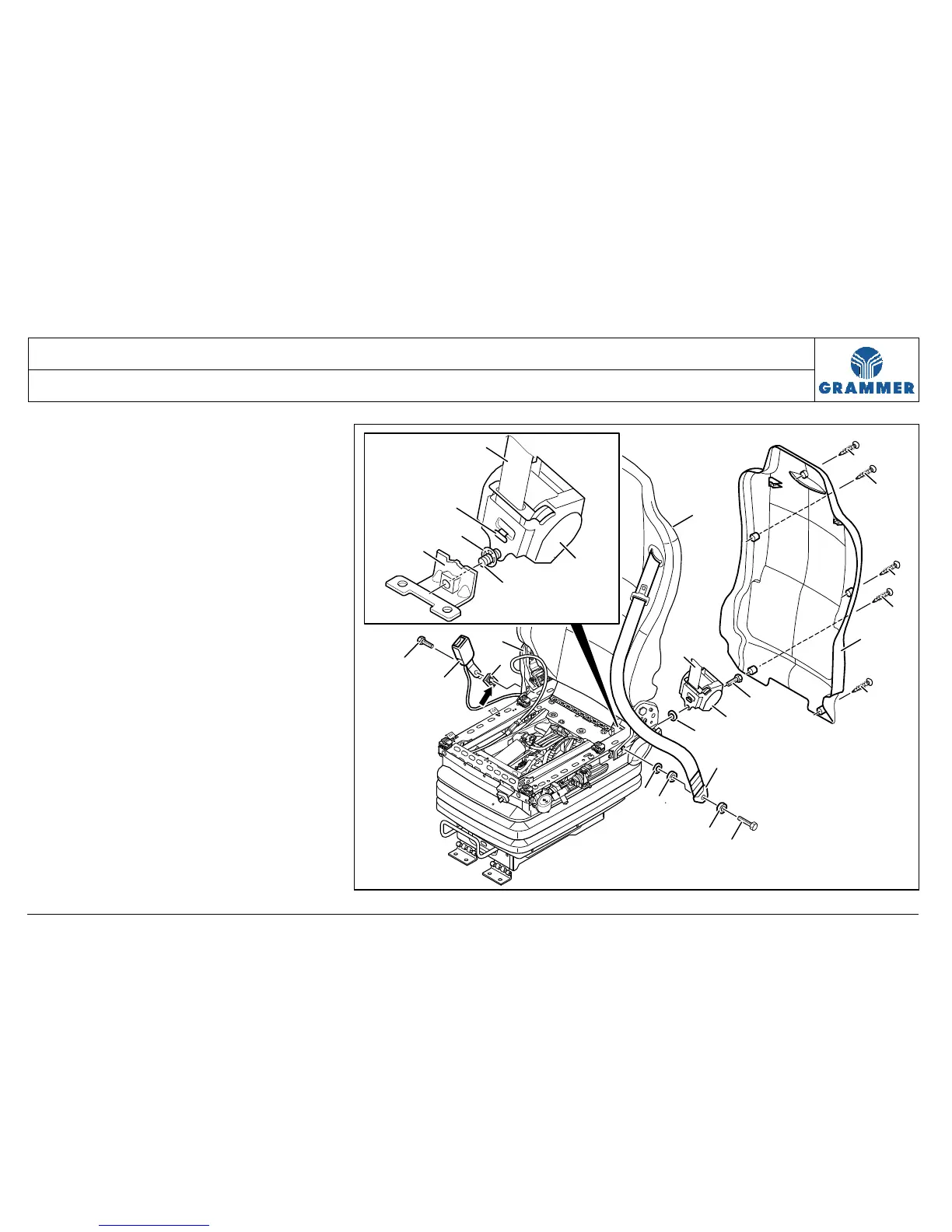

Unscrew the hexagon bolt (1) and
remove the belt buckle (2) and the
spacer (3).
Installation notes:
• Hexagon bolt (1), 45 Nm.
• The nose (arrow) at the bottom of
the spacer (3) must snap into the
hole of the seat frame (24).
17 Re-install the components in the
reverse order of their removal.
