Grammer MSG 90.6PG - Page 241

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.27 Lap belt – removal and installation
Page 1 of 4

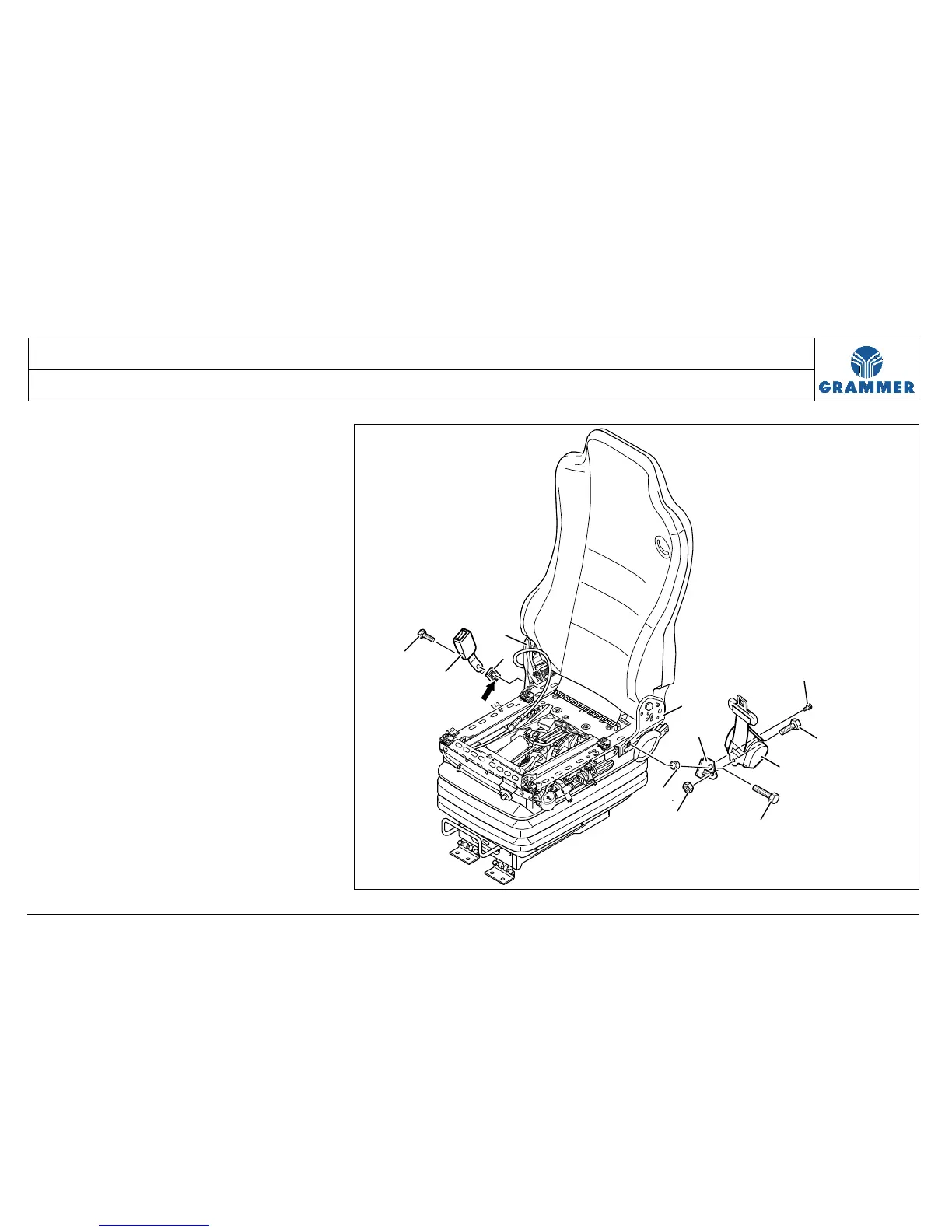

REMOVAL / INSTALLATION TABLE OF CONTENTS
(1) Hexagon bolt ........................ 45 Nm
(2) Belt buckle
(3) Spacer
(4) Seat frame
(5) Socket
(6) Support (for belt roller)
(7) Hexagon bolt ........................ 12 Nm
(8) Belt roller
(9) Hexagon bolt ........................ 45 Nm
(10) Hexagon nut
(11) Groove screw ....................... 12 Nm
5
10
6
8
7
11
9
3
2
4
4
1
2225
