3.27 Lap belt – removal and installation
Page 4 of 4
REMOVAL / INSTALLATION TABLE OF CONTENTS

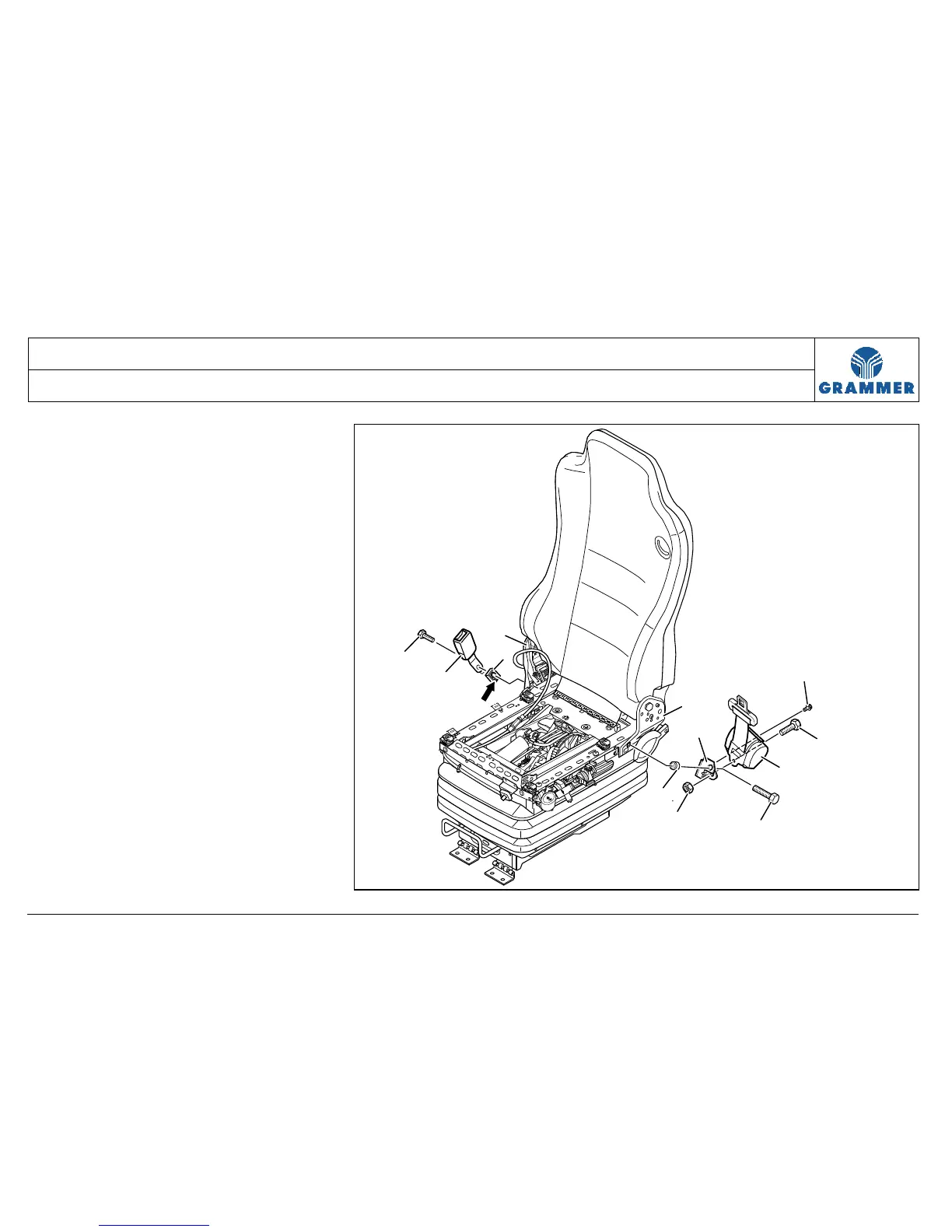

7 Unscrew the groove screw (11) from
the support (6).
Note:
The groove screw (11) protects the
belt roller (8) against distortion.
Installation note:
Groove screw (11), 12 Nm.
8 Unscrew the hexagon bolt (9) and
remove the belt roller (8) and the
hexagon nut (10).
Installation note:
Hexagon bolt (9), 45 Nm.
9 Unscrew the hexagon bolt (7) from the
seat frame (4) and remove the support
(6) and the socket (5).
Installation note:
Hexagon bolt (7), 45 Nm.
10 Re-install the components in the
reverse order of their removal.
