3.27 Lap belt – removal and installation
Page 3 of 4
REMOVAL / INSTALLATION TABLE OF CONTENTS
Removal and installation
5 Belt buckle with belt buckle cable:
Remove the belt buckle with belt
buckle cable (Chapter 3.28).
6 Belt buckle without belt buckle
cable:

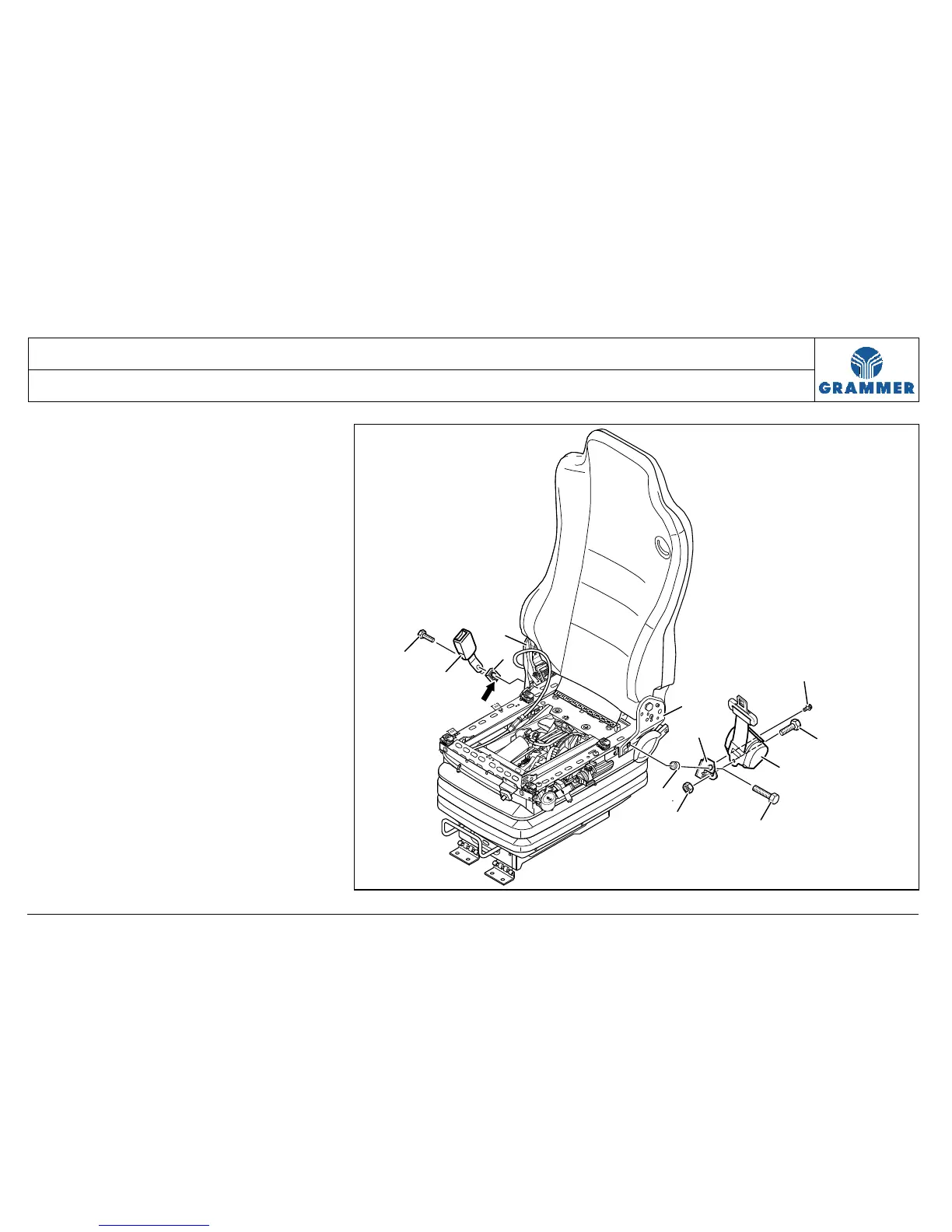

Unscrew the hexagon bolt (1) from the
seat frame (4) and remove the belt
buckle (2) and the spacer (3).
Installation notes:
• Hexagon bolt (1), 45 Nm.
• The nose (arrow) on the bottom side
of the spacer (3) must snap into the
drill hole of the seat frame (4).
