Grammer MSG 90.6PG - Page 247

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.28 Belt buckle with belt buckle cable (delivery option) –
removal and installation
Page 3 of 3
REMOVAL / INSTALLATION TABLE OF CONTENTS

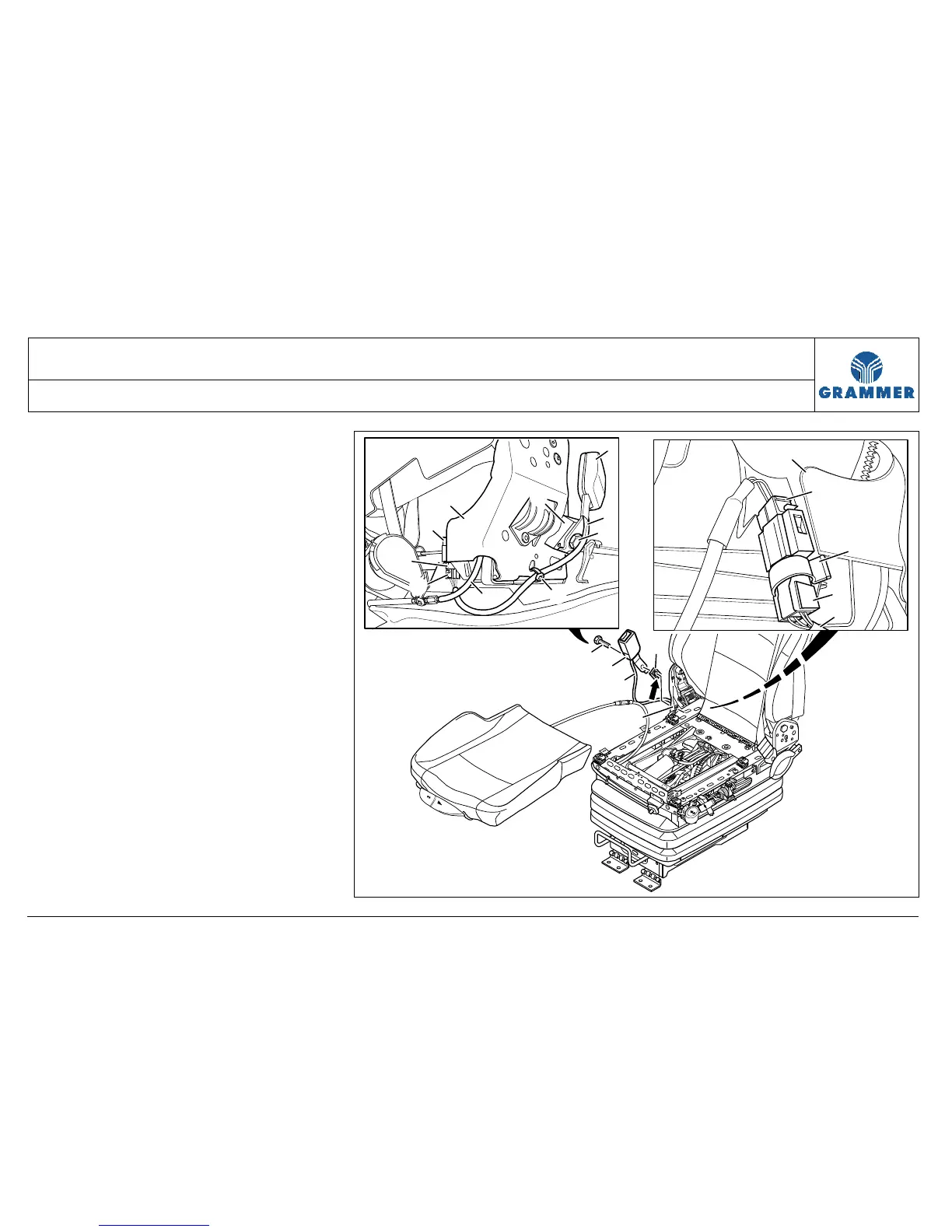

6 Pull out the clip (8) at the seat
frame (10).
7 Remove the belt buckle cable (2) from
the clip (8).
8 Unscrew the hexagon bolt (3) and
remove the belt buckle (1) with the
belt buckle cable (2) and the
spacer (4).
Installation notes:
• Hexagon bolt (3), 45 Nm.
• The nose (arrow) on the bottom side
of the spacer (4) must snap into the
drill hole of the seat frame (10).
• The belt buckle cable (2) must run in
front of the Bowden pull wire for
backrest adjustment (6).
9 Re-install the components in the
reverse order of their removal.
