Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.30 Backrest – removal and installation
Page 4 of 13

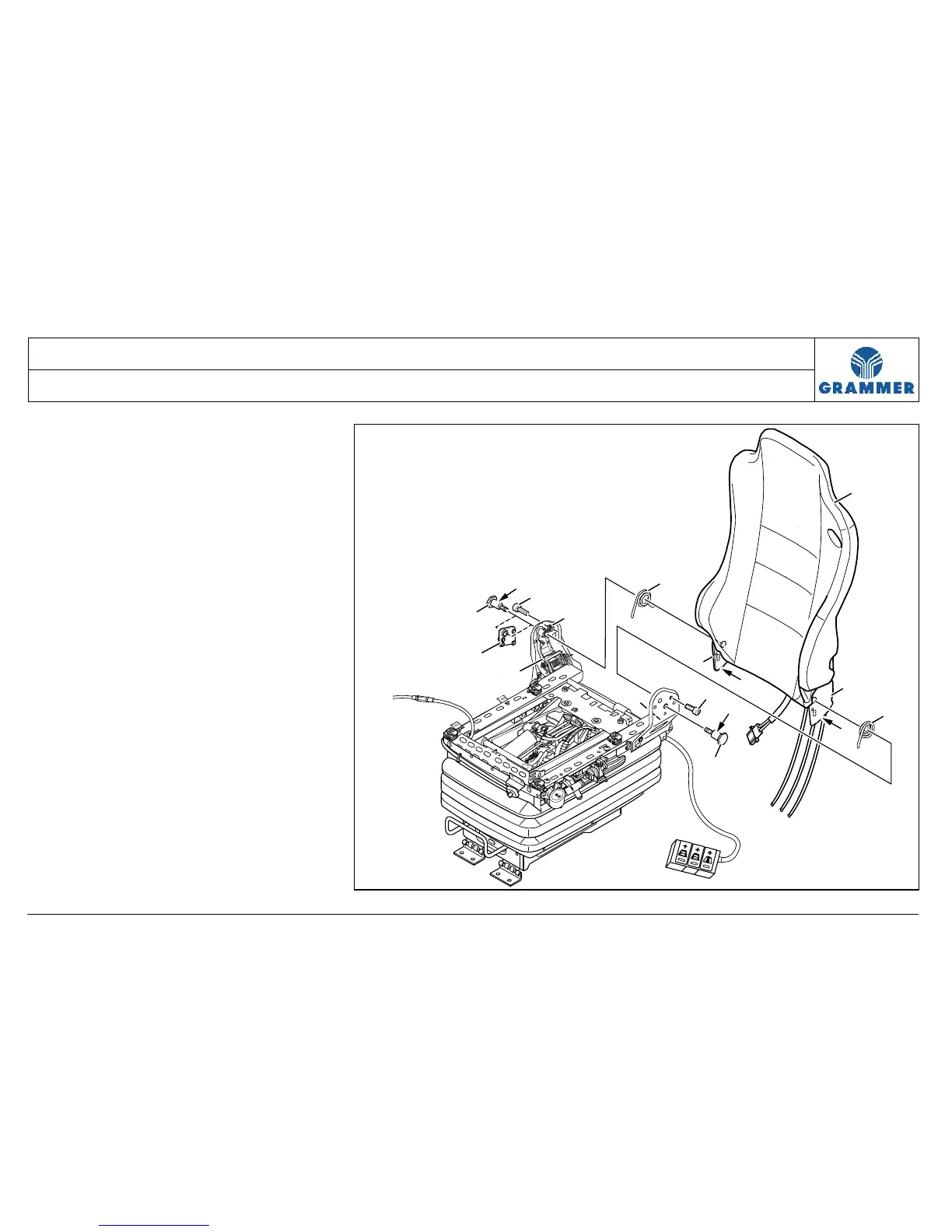

7 Remove the backrest cover and the
safety belt (see Chapter 3.26).
Note:
Remove the safety belt only at the
backrest. Do not remove the belt roller
and the belt buckle.
8 Remove air hoses for lumbar support
and lateral support adjustment at the
valve unit (see Chapter 3.23).
9 Seat with climate control system:
9.1 Remove covering clamps and
insertion rod at the backrest cover
and pull the backrest cover over the
foam plastic part in upwards
direction (see Chapter 3.31).
10
F
F
F
F
2
12
3
4
5
9
8
7
11
1
6
3
2220
